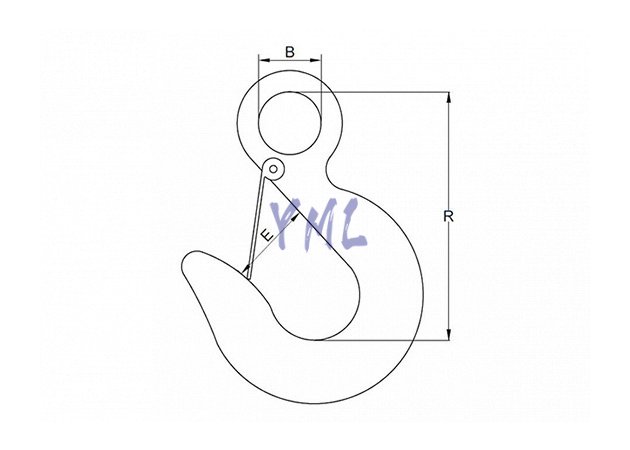

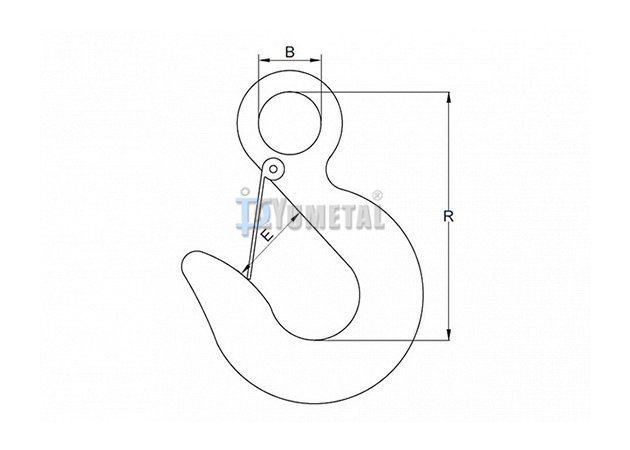

| Art No. | 320A-Alloy Steel | 320C-Carbon Steel | Dimensions(mm) | Weight | |||||||
| (WLL) | (B.L) | (WLL) | (B.L) | D | E | H | K | M | L | kg/pc | |
| GK23-075 | 0.75T | 3.75T | 0.5T | 2.5T | 16.5 | 19 | 17 | 72 | 16 | 97 | 0.21 |
| GK23-010 | 1T | 5T | 0.75T | 3.75T | 19 | 22 | 19 | 82 | 16 | 110 | 0.28 |
| GK23-015 | 1.6T/1.5T | 7.5T | 1T | 5T | 23 | 23 | 21 | 93.5 | 17.5 | 125 | 0.40 |
| GK23-020 | 2T | 10T | 1.5T | 7.5T | 28 | 24 | 26 | 103 | 21 | 140.5 | 0.65 |
| GK23-030 | 3.2T/3T | 15T | 2T | 10T | 31 | 27.5 | 28 | 119 | 23 | 162 | 0.81 |
| GK23-050 | 5T | 25T | 3T | 15T | 39 | 33 | 37 | 146 | 30 | 201 | 1.75 |
| GK23-070 | 7T | 35T | 5T | 25T | 51 | 40 | 46.5 | 186.5 | 38 | 256 | 3.77 |
| GK23-110 | 11T | 55T | 7.5T | 37.5T | 62 | 51 | 57 | 231.5 | 46 | 317 | 6.80 |
| GK23-150 | 15T | 75T | 10T | 50T | 73 | 57 | 70 | 260 | 55 | 360 | 9.96 |
| GK23-220 | 22T | 110T | 15T | 75T | 89 | 75 | 76 | 318 | 68.5 | 434 | 15.33 |
| GK23-300 | 30T | 150T | 20T | 100T | 90 | 82 | 91 | 360 | 70 | 495.5 | 27.20 |
