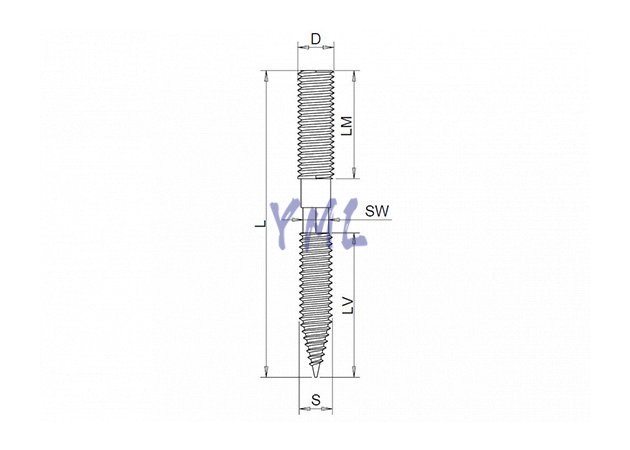

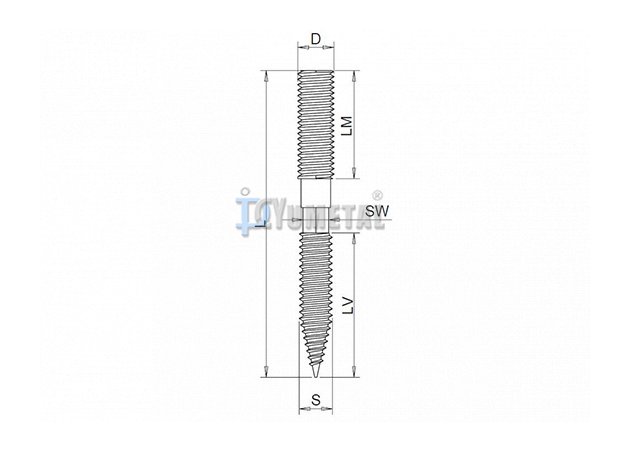

| Art No. | Ø D | L | LM | LV | SW |
| Weight |
| mm | mm | mm | mm | mm | mm | kg/100pcs | |
| AB5130-065 | M6 | 50 | 20 | 25 | 4 | 8 | 0.66 |
| AB5130-066 | M6 | 60 | 25 | 30 | 4 | 8 | 0.91 |
| AB5130-068 | M6 | 80 | 30 | 40 | 4 | 8 | 1.23 |
| AB5130-085 | M8 | 50 | 20 | 25 | 6 | 10 | 1.05 |
| AB5130-086 | M8 | 60 | 25 | 30 | 6 | 10 | 1.31 |
| AB5130-087 | M8 | 70 | 30 | 35 | 6 | 10 | 1.64 |
| AB5130-088 | M8 | 80 | 30 | 40 | 6 | 10 | 1.84 |
| AB5130-089 | M8 | 90 | 40 | 40 | 6 | 10 | 2.12 |
| AB5130-090 | M8 | 100 | 40 | 50 | 6 | 10 | 2.45 |
| AB5130-092 | M8 | 120 | 50 | 50 | 6 | 10 | 2.95 |
| AB5130-094 | M8 | 140 | 50 | 50 | 6 | 10 | 3.51 |
| AB5130-096 | M8 | 160 | 50 | 50 | 6 | 10 | 4.14 |
| AB5130-098 | M8 | 180 | 50 | 50 | 6 | 10 | 4.69 |
| AB5130-106 | M10 | 60 | 20 | 30 | 8 | 12 | 2.2 |
| AB5130-108 | M10 | 80 | 30 | 40 | 8 | 12 | 3.03 |
| AB5130-110 | M10 | 100 | 40 | 50 | 8 | 12 | 3.88 |
| AB5130-112 | M10 | 120 | 50 | 60 | 8 | 12 | 4.65 |
| AB5130-114 | M10 | 140 | 50 | 60 | 8 | 12 | 5.6 |
| AB5130-116 | M10 | 160 | 50 | 60 | 8 | 12 | 6.54 |
| AB5130-118 | M10 | 180 | 50 | 60 | 8 | 12 | 7.38 |
| AB5130-119 | M10 | 200 | 50 | 60 | 8 | 12 | 8.46 |
| AB5130-122 | M12 | 120 | 50 | 60 | 10 | 14 | 13.32 |
| AB5130-126 | M12 | 160 | 50 | 60 | 10 | 14 | 18.92 |
| AB5130-129 | M12 | 200 | 50 | 60 | 10 | 14 | 24.72 |
