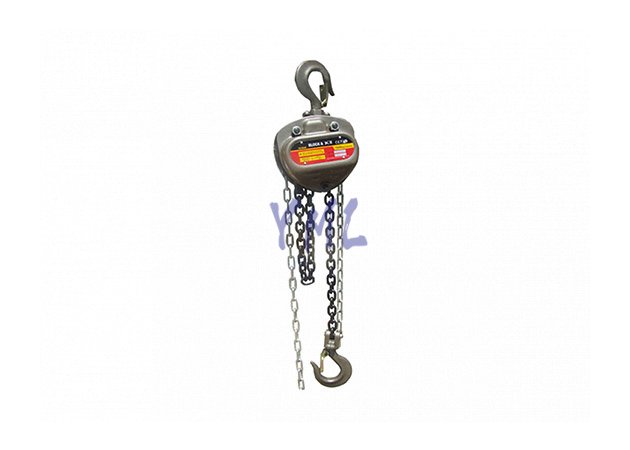

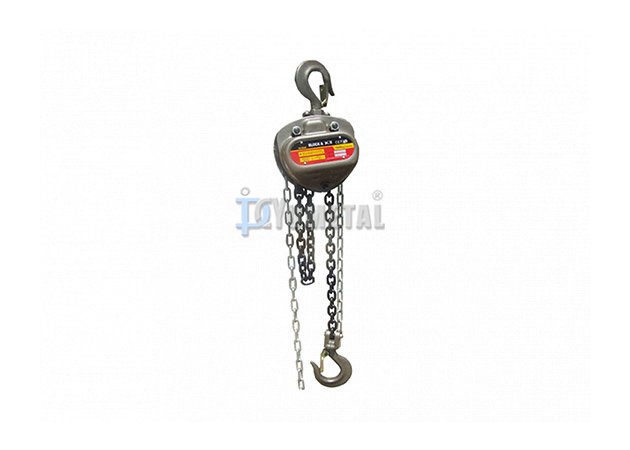

CB05 HSZ-KII Elevador manual

Parámetros Técnicos
Model
HSZ-KII0.5HSZ-KII1HSZ-KII1.5HSZ-KII2HSZ-KII3HSZ-KII5HSZ-KII10HSZ-KII20
CapacityTon0.50 1.00 1.50 2.00 3.00 5.00 10.00 20.00
Standard Liftm3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00
Running Test LoadKN7.50 15.00 22.50 30.00 45.00 77.00 150.00 300.00
Effort Requirde to Lift Rated LoadN231.00 309.00 320.00 360.00 340.00 414.00 414.00 828.00
Strands of Load Chain
1.00 1.00 1.00 1.00 2.00 2.00 4.00 8.00
Diameter of Load Chain mm6.00 6.00 8.00 8.00 8.00 10.00 10.00 10.00
Dimensions
(mm)
A131.00 140.00 161.00 161.00 161.00 86.00 207.00 215.00
B127.00 158.00 187.00 187.00 210.00 253.00 398.00 650.00
C270.00 317.00 399.00 414.00 465.00 636.00 798.00 890.00
Hook openingmm30.00 34.00 38.00 40.00 48.00 52.00 64.00 85.00
Net Weightkg/pc11.25 11.50 17.40 22.20 26.20 37.70 72.00 160.00
