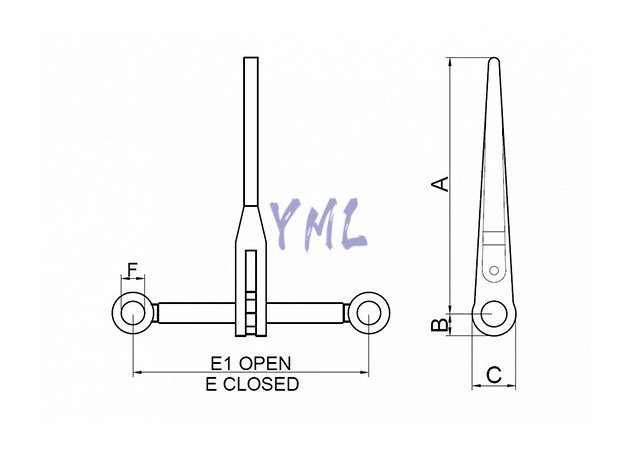

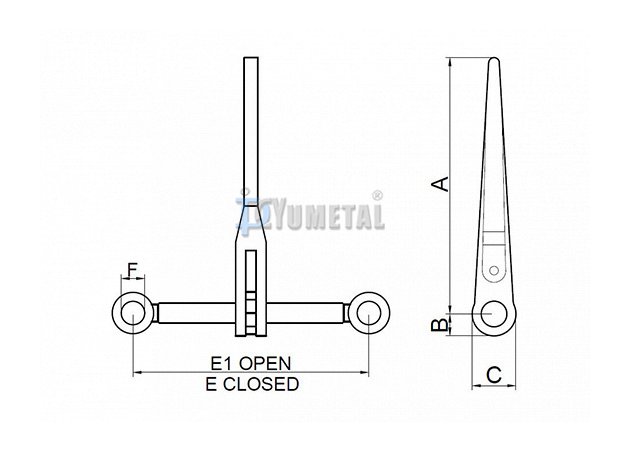

| Art No. | Min-Max Chain | WLL | Proof Load | Ultimate Load | Weight | Handle Length | Dimensions (inch) | |||||
| inch | lbs | lbs | lbs | lb/pc | inch | A | B | C | E | E1 | F | |
| LB0701 | 3/8 | 5400 | 10800 | 19000 | 7.80 | 13.92 | 13.92 | 1.30 | 2.60 | 13.70 | 21.70 | 0.79 |
| LB0702 | 1/2 | 9200 | 18400 | 33000 | 7.80 | 13.92 | 13.92 | 1.30 | 2.60 | 13.70 | 21.70 | 1.02 |
| LB0703 | 5/8 | 13000 | 26000 | 46000 | 8.50 | 13.92 | 13.92 | 1.30 | 2.60 | 14.17 | 22.17 | 1.02 |
