| Art No. | Min-Max Chain | WLL | Proof Load | Ultimate Load | Weight | Handle Length | Dimensions(inch) | ||||||

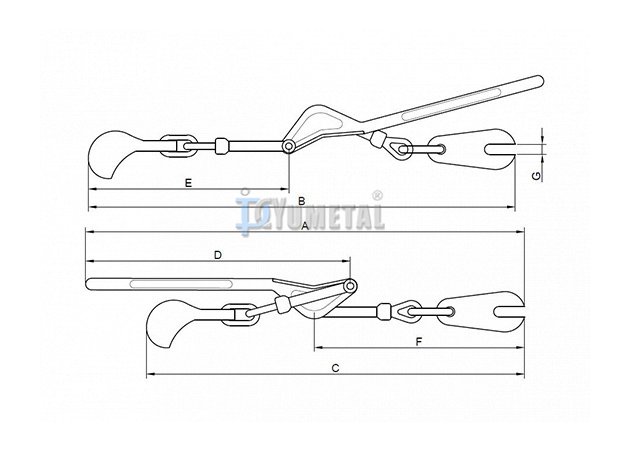

| inch | lbs | lbs | lbs | lb/pc | inch | A | B | C | D | E | F | G | |
| LB05-1/4-5/16 | 1/4-5/16 | 2600 | 5200 | 9200 | 3.60 | 11.42 | 20.66 | 18.70 | 15.35 | 11.42 | 8.85 | 8.85 | 0.35 |
| LB05-5/16-3/8 | 5/16-3/8 | 5400 | 10800 | 19000 | 8.56 | 15.43 | 25.20 | 25.20 | 21.46 | 15.55 | 12.20 | 12.20 | 0.47 |
| LB05-3/8-1/2 | 3/8-1/2 | 9200 | 18400 | 33000 | 12.38 | 17.24 | 28.15 | 28.70 | 24.61 | 17.52 | 13.58 | 13.58 | 0.59 |
