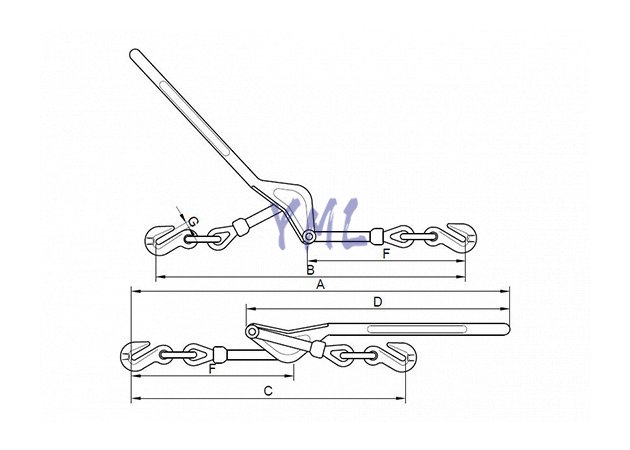

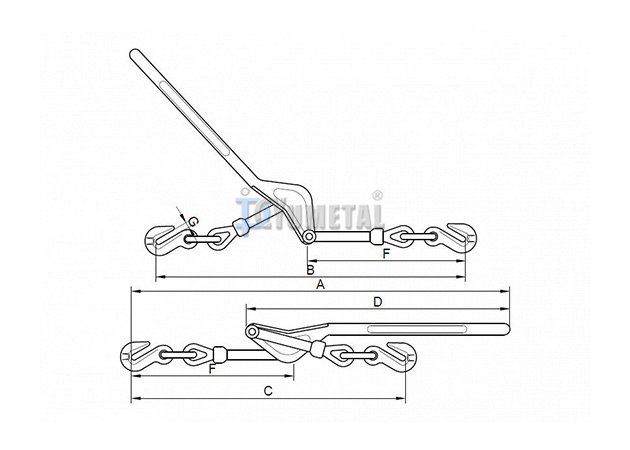

| Art No. | Min-Max Chain | WLL | Proof Load | Ultimate Load | Weight | Handle Length | Take Up | Dimensions (inch) | ||||||
| inch | lbs | lbs | lbs | lb/pc | inch | (inch) | A | B | C | D | E | F | G | |
| LB0201 | 1/4-5/16 | 2600 | 5200 | 9200 | 3.52 | 11.42 | 3.75 | 18.50 | 17.30 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| LB0202 | 5/16-3/8 | 5400 | 10800 | 19000 | 8.37 | 15.43 | 4.50 | 25.20 | 23.20 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| LB0203 | 3/8-1/2 | 9200 | 18400 | 33000 | 12.20 | 17.24 | 4.50 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
| LB0204 | 1/2-5/8 | 13000 | 26000 | 46000 | 19.70 | 21.00 | 4.75 | 33.86 | 30.12 | 25.78 | 20.84 | 14.37 | 13.37 | 0.74 |
