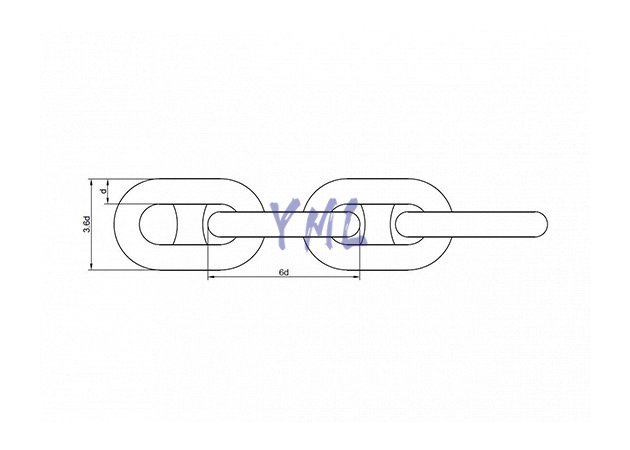

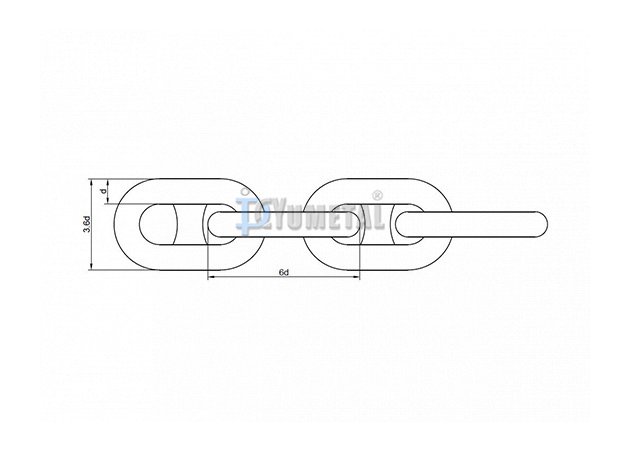

| Art No. | Chain Diameter | Chain Diameter | Grade 1 | Grade 2 | Grade 3 | Approx Mass (27.5M) | |||
| Proof Load | Breaking Load | Proof Load | Breaking Load | Proof Load | Breaking Load | ||||
| mm | inch | KN | KN | KN | KN | KN | KN | kg/pc | |
| AC01-14 | 14.00 | 9/16" | 58.00 | 82.00 | 82.00 | 116.00 | 116.00 | 165.00 | 130.00 |
| AC01-16 | 16.00 | 5/8" | 76.00 | 107.00 | 107.00 | 150.00 | 150.00 | 216.00 | 170.00 |
| AC01-17.5 | 17.50 | 11/16" | 89.00 | 127.00 | 127.00 | 179.00 | 179.00 | 256.00 | 189.00 |
| AC01-19 | 19.00 | 3/4" | 105.00 | 150.00 | 150.00 | 211.00 | 211.00 | 301.00 | 226.00 |
| AC01-20.5 | 20.50 | 13/16" | 123.00 | 175.00 | 175.00 | 244.00 | 244.00 | 349.00 | 263.00 |
| AC01-22 | 22.00 | 7/8" | 140.00 | 200.00 | 200.00 | 280.00 | 280.00 | 401.00 | 303.00 |
| AC01-24 | 24.00 | 15/16" | 167.00 | 237.00 | 237.00 | 332.00 | 332.00 | 476.00 | 370.00 |
| AC01-26 | 26.00 | 1" | 194.00 | 278.00 | 278.00 | 389.00 | 389.00 | 556.00 | 439.00 |
| AC01-28 | 28.00 | 1-1/8" | 225.00 | 321.00 | 321.00 | 449.00 | 449.00 | 642.00 | 496.00 |
| AC01-30 | 30.00 | 1-3/16" | 257.00 | 368.00 | 368.00 | 514.00 | 514.00 | 735.00 | 564.00 |
| AC01-32 | 32.00 | 1-1/4" | 291.00 | 417.00 | 417.00 | 583.00 | 583.00 | 833.00 | 635.00 |
| AC01-34 | 34.00 | 1-5/16" | 328.00 | 468.00 | 468.00 | 655.00 | 655.00 | 937.00 | 724.00 |
| AC01-36 | 36.00 | 1-7/16" | 366.00 | 523.00 | 523.00 | 732.00 | 732.00 | 1050.00 | 812.00 |
| AC01-38 | 38.00 | 1-1/2" | 405.00 | 581.00 | 581.00 | 812.00 | 812.00 | 1160.00 | 905.00 |
| AC01-40 | 40.00 | 1-9/16" | 448.00 | 640.00 | 640.00 | 896.00 | 896.00 | 1280.00 | 1032.00 |
| AC01-42 | 42.00 | 1-5/8" | 492.00 | 703.00 | 703.00 | 981.00 | 981.00 | 1400.00 | 1075.00 |
| AC01-44 | 44.00 | 1-3/4" | 538.00 | 769.00 | 769.00 | 1080.00 | 1080.00 | 1540.00 | 1197.00 |
| AC01-46 | 46.00 | 1-13/16" | 585.00 | 837.00 | 837.00 | 1170.00 | 1170.00 | 1680.00 | 1310.00 |
| AC01-48 | 48.00 | 1-7/8" | 635.00 | 908.00 | 908.00 | 1270.00 | 1270.00 | 1810.00 | 1438.00 |
| AC01-50 | 50.00 | 2" | 685.00 | 981.00 | 981.00 | 1370.00 | 1370.00 | 1960.00 | 1536.00 |
| AC01-52 | 52.00 | 2-1/16" | 739.00 | 1060.00 | 1060.00 | 1480.00 | 1480.00 | 2110.00 | 1669.00 |
| AC01-54 | 54.00 | 2-1/8" | 794.00 | 1140.00 | 1140.00 | 1590.00 | 1590.00 | 2270.00 | 1780.00 |
| AC01-56 | 56.00 | 2-3/16" | 851.00 | 1220.00 | 1220.00 | 1710.00 | 1710.00 | 2430.00 | 1936.00 |
| AC01-58 | 58.00 | 2-5/16" | 909.00 | 1290.00 | 1290.00 | 1810.00 | 1810.00 | 2600.00 | 2086.00 |
| AC01-60 | 60.00 | 2-3/8" | 969.00 | 1380.00 | 1380.00 | 1940.00 | 1940.00 | 2770.00 | 2249.00 |
| AC01-62 | 62.00 | 2-7/16" | 1030.00 | 1470.00 | 1470.00 | 2060.00 | 2060.00 | 2940.00 | 2373.00 |
| AC01-64 | 64.00 | 2-1/2" | 1100.00 | 1560.00 | 1560.00 | 2190.00 | 2190.00 | 3130.00 | 2529.00 |
| AC01-66 | 66.00 | 2-5/8" | 1160.00 | 1660.00 | 1660.00 | 2310.00 | 2310.00 | 3300.00 | 2689.00 |
| AC01-68 | 68.00 | 2-11/16" | 1230.00 | 1750.00 | 1750.00 | 2450.00 | 2450.00 | 3500.00 | 2858.00 |
| AC01-70 | 70.00 | 2-3/4" | 1290.00 | 1840.00 | 1840.00 | 2580.00 | 2580.00 | 3690.00 | 3025.00 |
| AC01-73 | 73.00 | 2-7/8" | 1390.00 | 1990.00 | 1990.00 | 2790.00 | 2790.00 | 3990.00 | 3341.00 |
| AC01-76 | 76.00 | 3" | 1500.00 | 2150.00 | 2150.00 | 3010.00 | 3010.00 | 4300.00 | 3566.00 |
| AC01-78 | 78.00 | 3-1/16" | 1580.00 | 2260.00 | 2260.00 | 3160.00 | 3160.00 | 4500.00 | 3756.00 |
| AC01-81 | 81.00 | 3-3/16" | 1690.00 | 2410.00 | 2410.00 | 3380.00 | 3380.00 | 4820.00 | 4050.00 |
| AC01-84 | 84.00 | 3-5/16" | 1800.00 | 2580.00 | 2580.00 | 3610.00 | 3610.00 | 5160.00 | 4355.00 |
| AC01-87 | 87.00 | 3-7/16" | 1920.00 | 2750.00 | 2750.00 | 3850.00 | 3850.00 | 5500.00 | 4672.00 |
| AC01-90 | 90.00 | 3-9/16" | 2050.00 | 2920.00 | 2920.00 | 4090.00 | 4090.00 | 5840.00 | 5000.00 |
| AC01-92 | 92.00 | 3-5/8" | 2130.00 | 3040.00 | 3040.00 | 4260.00 | 4260.00 | 6080.00 | 5224.00 |
| AC01-95 | 95.00 | 3-3/4" | 2260.00 | 3230.00 | 3230.00 | 4510.00 | 4510.00 | 6440.00 | 5571.00 |
| AC01-97 | 97.00 | 3-13/16" | 2340.00 | 3340.00 | 3340.00 | 4680.00 | 4680.00 | 6690.00 | 5809.00 |
| AC01-100 | 100.00 | 3-15/16" | 2470.00 | 3530.00 | 3530.00 | 4940.00 | 4940.00 | 7060.00 | 6174.00 |
| AC01-102 | 102.00 | 4" | 2560.00 | 3660.00 | 3660.00 | 5120.00 | 5120.00 | 7320.00 | 6423.00 |
| AC01-105 | 105.00 | 4-1/8" | 2700.00 | 3850.00 | 3850.00 | 5390.00 | 5390.00 | 7700.00 | 6806.00 |
| AC01-107 | 107.00 | 4-3/16" | 2790.00 | 3980.00 | 3980.00 | 5570.00 | 5570.00 | 7960.00 | 7067.00 |
| AC01-111 | 111.00 | 4-3/8" | 2970.00 | 4250.00 | 4250.00 | 5940.00 | 5940.00 | 8480.00 | 7606.00 |
| AC01-114 | 114.00 | 4-1/2" | 3110.00 | 4440.00 | 4440.00 | 6230.00 | 6230.00 | 8890.00 | 8023.00 |
| AC01-117 | 117.00 | 4-5/8" | 3260.00 | 4650.00 | 4650.00 | 6510.00 | 6510.00 | 9300.00 | 8450.00 |
| AC01-120 | 120.00 | 4-3/4" | 3400.00 | 4850.00 | 4850.00 | 6810.00 | 6810.00 | 9720.00 | 8889.00 |
| AC01-122 | 122.00 | 4-13/16" | 3500.00 | 5000.00 | 5000.00 | 7000.00 | 7000.00 | 9990.00 | 9187.00 |
| AC01-124 | 124.00 | 4-7/8" | 3600.00 | 5140.00 | 5140.00 | 7200.00 | 7200.00 | 10280.00 | 9492.00 |
| AC01-127 | 127.00 | 5" | 3750.00 | 5350.00 | 5350.00 | 7490.00 | 7490.00 | 10710.00 | 9957.00 |
