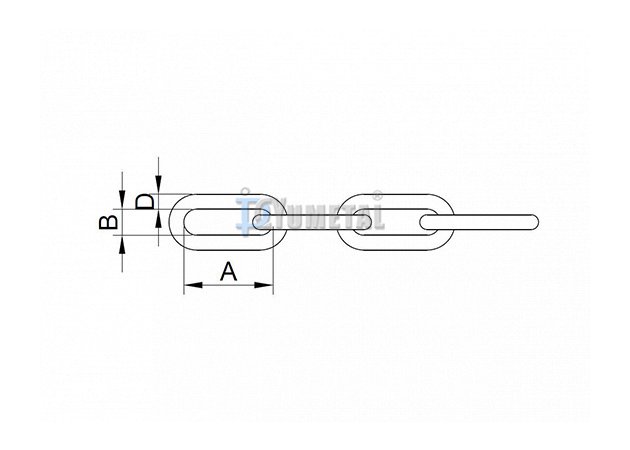

| Art No. | Dia | Inside Length | Inside Width | Length Per 11 Links | |||||
| mm | （+/- ）mm | mm | (+)mm | (-)mm | mm | mm | (+)mm | (-)mm | |
| CH38-02 | 2 | 0.20 | 12.00 | 0.20 | 0.20 | 3.50 | 132.00 | 1.00 | 0.50 |
| CH38-03 | 3 | 0.20 | 16.00 | 0.20 | 0.20 | 4.20 | 176.00 | 1.40 | 0.70 |
| CH38-04 | 4 | 0.20 | 16.00 | 0.30 | 0.20 | 5.00 | 176.00 | 2.10 | 1.10 |
| CH38-05 | 5 | 0.20 | 18.80 | 0.40 | 0.20 | 6.00 | 203.50 | 2.40 | 1.20 |
| CH38-06 | 6 | 0.20 | 18.50 | 0.40 | 0.20 | 7.20 | 203.50 | 2.40 | 1.20 |
| CH38-07 | 7 | 0.30 | 22.00 | 0.40 | 0.20 | 8.40 | 242.00 | 3.00 | 1.40 |
| CH38-08 | 8 | 0.30 | 24.00 | 0.40 | 0.20 | 9.60 | 264.00 | 3.20 | 1.50 |
| CH38-09 | 9 | 0.40 | 27.00 | 0.50 | 0.30 | 10.80 | 297.00 | 3.60 | 1.80 |
| CH38-10 | 10 | 0.40 | 28.00 | 0.50 | 0.30 | 12.00 | 308.00 | 3.70 | 1.90 |
| CH38-11 | 11 | 0.40 | 31.00 | 0.50 | 0.30 | 13.20 | 341.00 | 4.00 | 2.00 |
| CH38-12 | 12 | 0.30 | 36.00 | 0.60 | 0.30 | 14.40 | 396.00 | 4.40 | 2.20 |
| CH38-13 | 13 | 0.50 | 36.00 | 0.60 | 0.30 | 15.60 | 396.00 | 4.60 | 2.40 |
| CH38-14 | 14 | 0.60 | 41.00 | 0.70 | 0.40 | 16.80 | 451.00 | 5.40 | 2.70 |
| CH38-16 | 16 | 0.60 | 45.00 | 0.80 | 0.40 | 19.20 | 495.00 | 6.00 | 3.00 |
| CH38-18 | 18 | 0.90 | 50.00 | 0.80 | 0.40 | 21.30 | 550.00 | 6.60 | 3.30 |
| CH38-19 | 19 | 0.40 | 53.00 | 0.90 | 0.40 | 22.80 | 583.00 | 7.00 | 3.70 |
| CH38-20 | 20 | 1.00 | 56.00 | 1.00 | 0.50 | 24.00 | 616.00 | 7.40 | 3.70 |
| CH38-22 | 22 | 1.20 | 62.00 | 1.10 | 0.50 | 26.40 | 682.00 | 8.00 | 4.00 |
| CH38-23 | 23 | 1.20 | 64.00 | 1.10 | 0.50 | 27.60 | 704.00 | 8.40 | 4.20 |
| CH38-26 | 26 | 1.30 | 73.00 | 1.20 | 0.60 | 31.20 | 803.00 | 9.60 | 4.80 |
| CH38-28 | 28 | 1.40 | 78.00 | 1.30 | 0.65 | 33.80 | 858.00 | 10.20 | 5.10 |
| CH38-30 | 30 | 1.50 | 84.00 | 1.40 | 0.70 | 41.00 | 924.00 | 11.00 | 5.50 |
| CH38-32 | 32 | 1.60 | 90.00 | 1.50 | 0.75 | 43.00 | 990.00 | 11.80 | 5.90 |
