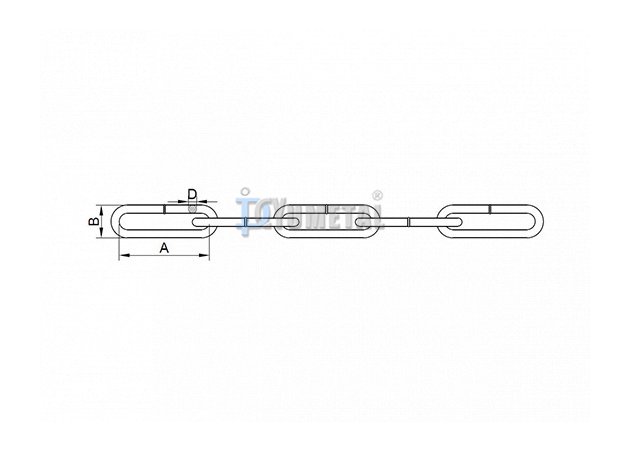

| Art No. | Diameter | Inside Length | Outside Width | Working Load | Test Load | Breaking Load | Weight | |||
| D | A | B | ||||||||
| mm | ±mm | mm | ±mm | mm | ±mm | kg | N | N | kg/M | |
| CH14-2.0 | 2.0 | 0.5 | 22 | 1.0 | 8 | 0.4 | 25 | 800 | 1250 | 0.06 |
| CH14-2.5 | 2.5 | 24 | 1.1 | 10 | 0.5 | 40 | 800 | 2000 | 0.10 | |
| CH14-3.0 | 3.0 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 | |
| CH14-3.5 | 3.5 | 28 | 1.3 | 14 | 0.7 | 80 | 1540 | 3850 | 0.20 | |
| CH14-4.0 | 4.0 | 32 | 1.5 | 16 | 0.8 | 100 | 2500 | 6500 | 0.27 | |
| CH14-4.5 | 4.5 | 34 | 1.7 | 18 | 0.9 | 128 | 3000 | 8000 | 0.35 | |
| CH14-5.0 | 5.0 | 35 | 1.8 | 20 | 1.0 | 160 | 4000 | 10000 | 0.43 | |
| CH14-5.5 | 5.5 | 38.5 | 1.8 | 22 | 1.1 | 195 | 4200 | 10500 | 0.52 | |
| CH14-6.0 | 6.0 | 42 | 2.0 | 24 | 1.2 | 200 | 5000 | 12000 | 0.63 | |
| CH14-7.0 | 7.0 | 49 | 2.5 | 28 | 1.4 | 300 | 7500 | 19000 | 0.86 | |
| CH14-8.0 | 8.0 | 52 | 2.5 | 32 | 1.6 | 400 | 10000 | 25000 | 1.10 | |
| CH14-8.5 | 8.5 | 56 | 2.8 | 34 | 1.7 | 460 | 10200 | 25500 | 1.25 | |
| CH14-9.0 | 9.0 | 1 | 59 | 3.0 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 |
| CH14-10 | 10.0 | 65 | 3.2 | 40 | 2.0 | 630 | 16000 | 40000 | 1.75 | |
| CH14-11 | 11.0 | 72 | 3.4 | 44 | 2.0 | 790 | 15800 | 47500 | 2.11 | |
| CH14-12 | 12.0 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| CH14-13 | 13.0 | 82 | 4.0 | 52 | 2.5 | 1000 | 25000 | 63000 | 2.95 | |
| CH14-16 | 16.0 | 100 | 5.0 | 64 | 3.2 | 1600 | 40000 | 100000 | 4.45 | |
| CH14-18 | 18.0 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| CH14-19 | 19.0 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| CH14-20 | 20.0 | 120 | 6.0 | 75 | 3.8 | 2500 | 50000 | 160000 | 7.00 | |
| CH14-22 | 22.0 | 127 | 6.0 | 82 | 4.0 | 3170 | 63300 | 190000 | 8.55 | |
| CH14-25 | 25.0 | 140 | 6.6 | 85 | 4.2 | 4090 | 81700 | 245000 | 10.90 | |
