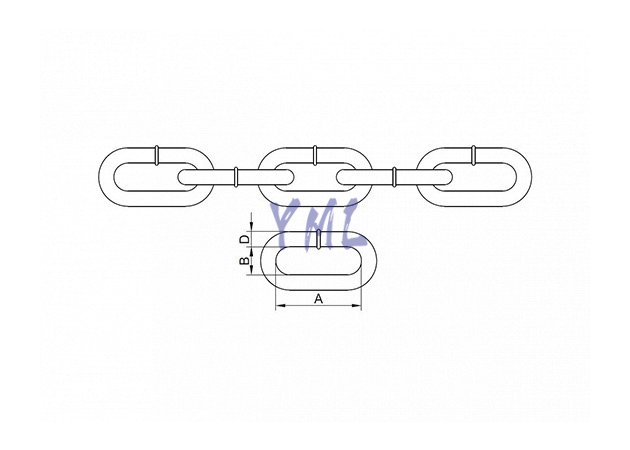

| Art No. | Normal Size | Working Load Limit(max) | Proof load(min) | Min Breaking Load | Weight | Inside Length (max) | Inside Width(min) | |||||||
| inch | mm | kg | lb | kn | lb | kn | lb | kg/100ft | lb/100ft | mm | inch | mm | inch | |
| Proof Coil Chain ASTM80(G30) | ||||||||||||||
| CH01-1/8G30 | 1/8" | 4.0 | 190 | 420 | 3.78 | 850 | 7.56 | 1700 | 8.8 | 19 | 22.6 | 0.89 | 7.4 | 0.29 |
| CH01-3/16G30 | 3/16" | 5.5 | 360 | 800 | 7.11 | 1600 | 14.2 | 3200 | 18.3 | 40 | 24.1 | 0.95 | 10.2 | 0.40 |
| CH01-1/4G30 | 1/4" | 7.1 | 600 | 1330 | 11.8 | 2650 | 23.6 | 5300 | 32.7 | 72 | 25.4 | 1.00 | 12.7 | 0.50 |
| CH01-5/16G30 | 5/16" | 8.7 | 910 | 2000 | 17.8 | 4000 | 35.6 | 8000 | 48.0 | 106 | 27.9 | 1.10 | 12.7 | 0.50 |
| CH01-3/8G30 | 3/8" | 10.3 | 1270 | 2800 | 24.9 | 5600 | 49.8 | 11200 | 70.3 | 155 | 31.2 | 1.23 | 15.7 | 0.62 |
| CH01-1/2G30 | 1/2" | 13.5 | 2190 | 4800 | 42.9 | 9650 | 85.8 | 19300 | 123.0 | 271 | 38.9 | 1.53 | 20.3 | 0.80 |
| CH01-5/8G30 | 5/8" | 16.7 | 3350 | 7400 | 65.8 | 14800 | 131.6 | 29600 | 184.0 | 405 | 48.3 | 1.90 | 25.4 | 1.00 |
| CH01-3/4G30 | 3/4" | 19.8 | 4700 | 10400 | 92.5 | 20800 | 185.0 | 41600 | 264.0 | 582 | 54.6 | 2.15 | 28.4 | 1.12 |
| CH01-7/8G30 | 7/8" | 23.0 | 6350 | 14000 | 124.5 | 28000 | 249.0 | 56000 | 368.0 | 811 | 63.5 | 2.50 | 34.8 | 1.37 |
| CH01-1G30 | 1" | 26.5 | 8400 | 18600 | 165.4 | 37200 | 330.8 | 74400 | 474.0 | 1045 | 69.9 | 2.75 | 38.1 | 1.50 |
| High Test Chain ASTM80(G43) | ||||||||||||||
| CH01-1/4G43 | 1/4" | 7.1 | 1180 | 2600 | 19.1 | 4300 | 34.5 | 7750 | 36.3 | 80 | 21.8 | 0.86 | 10.2 | 0.40 |
| CH01-5/16G43 | 5/16" | 8.7 | 1770 | 3900 | 28.4 | 6400 | 51.6 | 11600 | 50.4 | 111 | 26.7 | 1.05 | 12.2 | 0.48 |
| CH01-3/8G43 | 3/8" | 10.3 | 2450 | 5400 | 39.6 | 8900 | 72.0 | 16200 | 72.6 | 160 | 30.3 | 1.19 | 14.7 | 0.58 |
| CH01-1/2G43 | 1/2" | 13.5 | 4170 | 9200 | 68.0 | 15300 | 122.7 | 27600 | 128.6 | 284 | 36.0 | 1.43 | 19.1 | 0.75 |
| Transport Chain ASTM80(G70) | ||||||||||||||
| CH01-1/4G70 | 1/4" | 7.1 | 1430 | 3150 | 27.8 | 6300 | 56.0 | 12600 | 34.0 | 75 | 21.8 | 0.86 | 11.4 | 0.45 |
| CH01-5/16G70 | 5/16" | 8.7 | 2130 | 4700 | 41.8 | 9400 | 83.6 | 18800 | 50.4 | 111 | 25.6 | 1.01 | 11.7 | 0.46 |
| CH01-3/8G70 | 3/8" | 10.3 | 2990 | 6600 | 58.7 | 13200 | 117.4 | 26400 | 71.0 | 156 | 30.2 | 1.19 | 14.0 | 0.55 |
