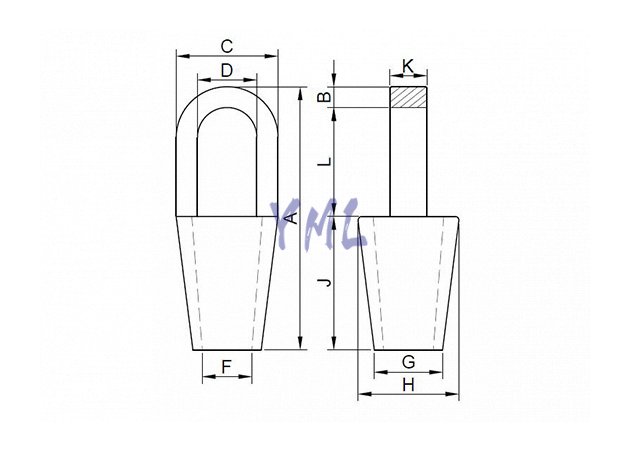

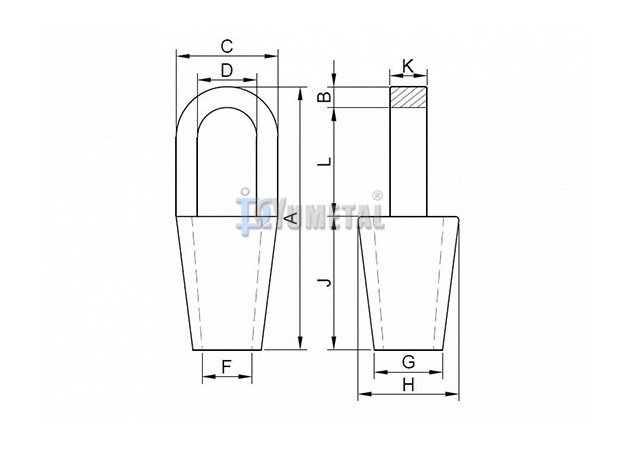

| Art No. | Size | A | B | C | D | F | L | Weight |
| inch | inch | inch | inch | inch | inch | inch | lb/pc | |
| FE14-1/4 | 1/4" | 4.50 | 0.50 | 1.50 | 0.88 | 0.38 | 1.75 | 0.50 |
| FE14-5/16-3/8 | 5/16"-3/8" | 4.88 | 0.62 | 1.69 | 0.97 | 0.50 | 2.00 | 0.75 |
| FE14-7/16-1/2 | 7/16"-1/2" | 5.44 | 0.69 | 2.00 | 1.16 | 0.56 | 2.25 | 1.50 |
| FE14-9/16-5/8 | 9/16"-5/8" | 6.31 | 0.81 | 2.63 | 1.41 | 0.69 | 2.50 | 2.50 |
| FE14-3/4 | 3/4" | 7.56 | 1.06 | 3.00 | 1.66 | 0.81 | 3.00 | 4.25 |
| FE14-7/8 | 7/8" | 8.75 | 1.25 | 3.63 | 1.88 | 0.94 | 3.50 | 7.25 |
| FE14-1 | 1" | 9.88 | 1.38 | 4.13 | 2.30 | 1.13 | 4.00 | 10.50 |
| FE14-1 1/8 | 1 1/8" | 11.00 | 1.50 | 4.50 | 2.56 | 1.25 | 4.50 | 14.25 |
| FE14-1 1/4-1 3/8 | 1 1/4"-1 3/8" | 12.12 | 1.63 | 5.30 | 2.81 | 1.50 | 5.00 | 19.75 |
| FE14-1 1/2 | 1 1/2" | 13.94 | 1.94 | 5.33 | 3.19 | 1.63 | 6.00 | 29.20 |
| FE14-1 5/8 | 1 5/8" | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 6.50 | 36.00 |
| FE14-1 3/4-1 7/8 | 1 3/4"-1 7/8" | 17.25 | 2.19 | 6.75 | 3.75 | 2.00 | 7.56 | 57.25 |
| FE14-2-2 1/8 | 2-2 1/8" | 19.50 | 2.44 | 7.63 | 4.38 | 2.25 | 8.56 | 79.00 |
| FE14-2 1/4-2 3/8 | 2 1/4"-2 3/8" | 21.13 | 2.63 | 8.50 | 5.00 | 2.50 | 9.50 | 105.00 |
| FE14-2 1/2-2 5/8 | 2 1/2"-2 5/8" | 23.50 | 3.12 | 9.50 | 5.50 | 2.88 | 10.62 | 140.00 |
| FE14-2 3/4-2 7/8 | 2 3/4"-2 7/8" | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 11.25 | 220.00 |
| FE14-3-3 1/8 | 3-3 1/8" | 27.00 | 3.25 | 11.50 | 6.75 | 3.38 | 11.75 | 276.00 |
| FE14-3 1/4-3 3/8 | 3 1/4"-3 3/8" | 29.25 | 4.00 | 12.25 | 7.25 | 3.62 | 12.25 | 313.00 |
| FE14-3 1/2-3 5/8 | 3 1/2"-3 5/8" | 31.00 | 4.00 | 13.00 | 7.75 | 3.88 | 13.00 | 400.00 |
| FE14-3 3/4-4 | 3 3/4"-4" | 33.25 | 4.25 | 14.25 | 8.50 | 4.25 | 14.00 | 542.00 |
