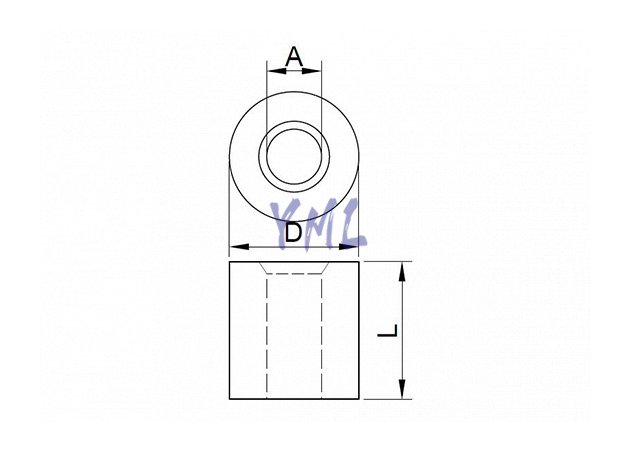

| Art No. | Size | A | D | L | Weight |
| inch | mm | mm | mm | kg/1000pcs | |
| FE04-3/64 | 3/64" | 1.54 | 4.4 | 4.16 | 0.236 |
| FE04-1/16 | 1/16" | 1.92 | 6.35 | 4.16 | 0.278 |
| FE04-5/64 | 5/64" | 2.38 | 6.35 | 4.16 | 0.282 |
| FE04-3/32 | 3/32" | 2.9 | 8.72 | 7.95 | 1.05 |
| FE04-1/8 | 1/8" | 3.86 | 8.72 | 7.95 | 0.949 |
| FE04-5/32 | 5/32" | 4.7 | 11.11 | 8.73 | 1.76 |
| FE04-3/16 | 3/16" | 5.54 | 11.11 | 8.73 | 1.69 |
| FE04-7/32 | 7/32" | 6.35 | 11.11 | 8.73 | 1.50 |
| FE04-1/4 | 1/4" | 7.2 | 17.46 | 17.46 | 9.07 |
| FE04-5/16 | 5/16" | 9.53 | 17.46 | 17.46 | 7.46 |
| FE04-3/8 | 3/8" | 11.13 | 17.46 | 17.46 | 6.58 |
| FE04-1/2 | 1/2" | 14.28 | 26.98 | 26.98 | 30.32 |
| FE04-9/16 | 9/16" | 15.88 | 28.6 | 31.75 | 38.52 |
| FE04-5/8 | 5/8" | 17.46 | 31.75 | 31.75 | 47.88 |
