| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||

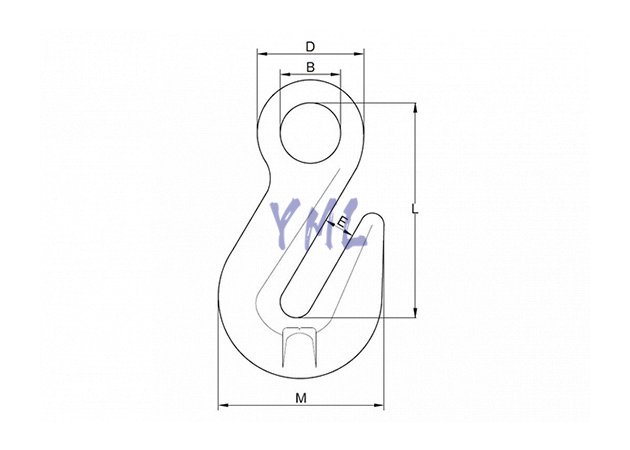

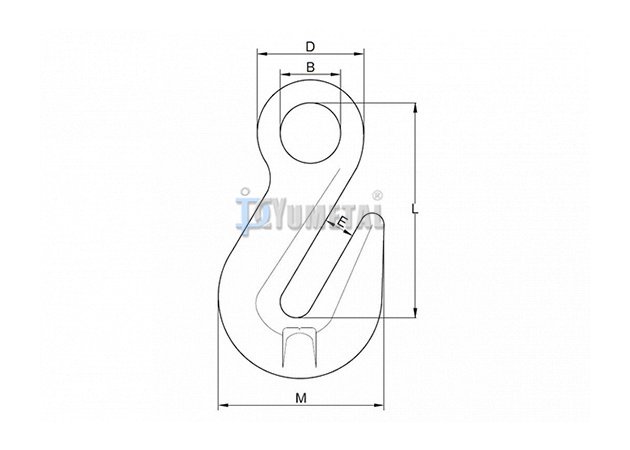

| mm | ton | ton | E±1 | B ±1 | D±1.5 | M±2 | L±3 | kg/pc | |
| GK30-06 | 6 | 1.4 | 5.6 | 8 | 14.5 | 30.5 | 43.5 | 71 | 0.20 |
| GK30-08 | 8 | 2.5 | 10 | 10.8 | 18 | 37 | 53 | 91.5 | 0.28 |
| GK30-10 | 10 | 4 | 16 | 13.5 | 22.5 | 48.5 | 72 | 127.5 | 0.72 |
| GK30-13 | 13 | 6.7 | 26.8 | 16.5 | 28 | 59 | 96 | 163 | 1.60 |
| GK30-16 | 16 | 10 | 40 | 19.2 | 36 | 74 | 112.5 | 183 | 2.45 |
| GK30-20 | 20 | 16 | 64 | 24 | 43.5 | 89.5 | 143 | 227 | 4.72 |
| GK30-22 | 22 | 19 | 76 | 27 | 48.5 | 100.5 | 160.5 | 260.5 | 8.20 |
