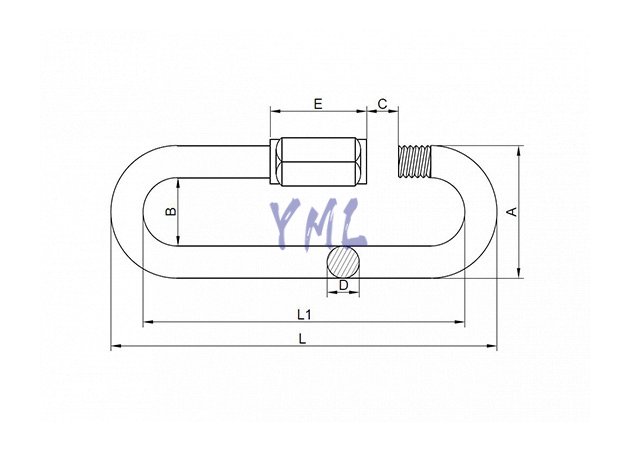

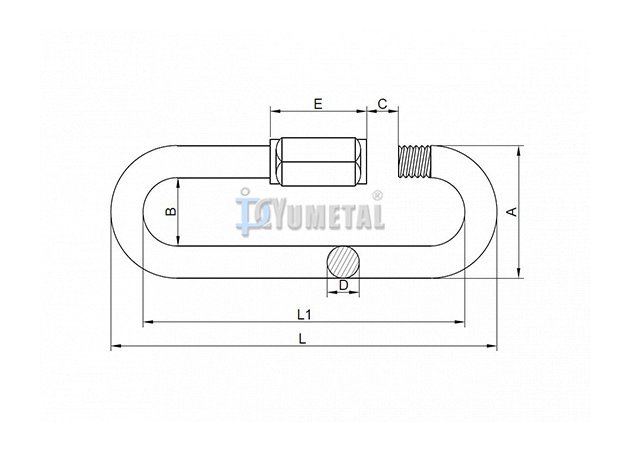

| Art No. | Size | SWL | A | B | C | D | L | L1 | E | Weight |
| mm | lbs | mm | mm | mm | mm | mm | mm | mm | kg/100pcs | |
| QL03-3.5 | 3.50 | 180.00 | 17.00 | 10.00 | 5.00 | 3.50 | 46.00 | 39.50 | 16.00 | 0.70 |
| QL03-04 | 4.00 | 350.00 | 19.50 | 11.50 | 5.50 | 4.00 | 53.00 | 45.00 | 19.00 | 1.50 |
| QL03-05 | 5.00 | 550.00 | 23.00 | 13.00 | 6.50 | 5.00 | 62.00 | 52.00 | 22.00 | 2.00 |
| QL03-06 | 6.00 | 770.00 | 26.50 | 14.50 | 7.50 | 6.00 | 70.50 | 58.50 | 25.00 | 3.75 |
| QL03-07 | 7.00 | 880.00 | 30.00 | 16.00 | 8.50 | 7.00 | 79.00 | 65.00 | 28.00 | 6.00 |
| QL03-08 | 8.00 | 1430.00 | 33.50 | 17.50 | 10.50 | 8.00 | 88.00 | 72.00 | 31.50 | 9.00 |
| QL03-10 | 10.00 | 1760.00 | 40.50 | 20.50 | 12.00 | 10.00 | 105.50 | 85.50 | 36.00 | 13.55 |
| QL03-12 | 12.00 | 2755.00 | 47.50 | 23.50 | 15.00 | 12.00 | 124.00 | 100.00 | 43.00 | 25.00 |
