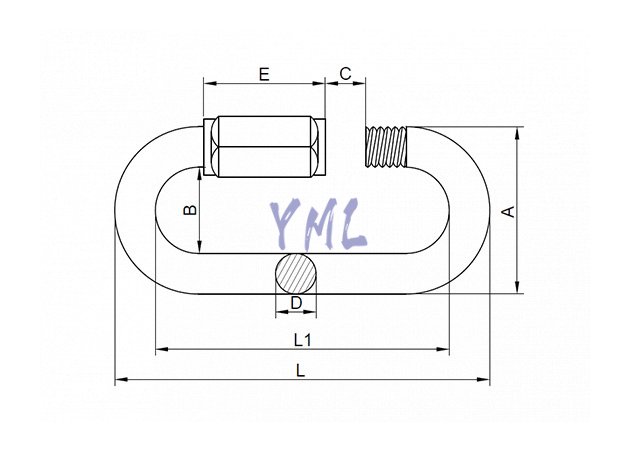

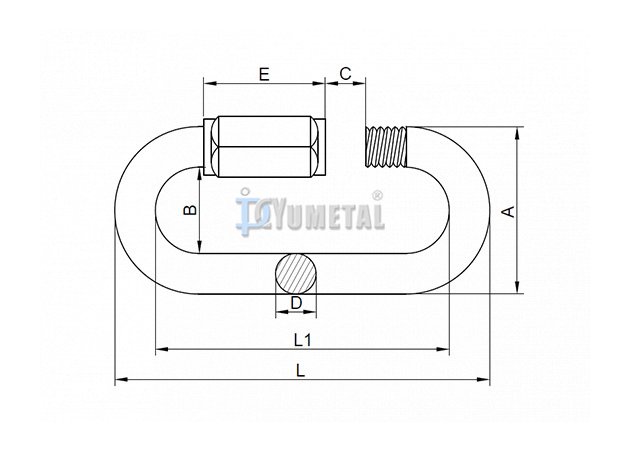

| Art No. | Size | SWL | A | B | C | D | L | L1 | E | Weight |
| mm | lbs | mm | mm | mm | mm | mm | mm | mm | kg/100pcs | |
| QL01-03 | 3.00 | —— | —— | —— | —— | —— | —— | —— | —— | 0.40 |
| QL01-3.5 | 3.50 | 220.00 | 17.00 | 10.00 | 5.00 | 3.50 | 36.00 | 29.00 | 11.00 | 0.80 |
| QL01-04 | 4.00 | 400.00 | 19.50 | 11.50 | 5.50 | 4.00 | 39.50 | 31.50 | 12.50 | 1.20 |
| QL01-05 | 5.00 | 660.00 | 23.00 | 13.00 | 6.50 | 5.00 | 48.50 | 35.50 | 16.00 | 2.00 |
| QL01-06 | 6.00 | 880.00 | 26.50 | 14.50 | 7.50 | 6.00 | 57.00 | 45.00 | 19.00 | 3.50 |
| QL01-07 | 7.00 | 1240.00 | 30.00 | 16.00 | 8.50 | 7.00 | 66.00 | 52.00 | 21.50 | 5.45 |
| QL01-08 | 8.00 | 1600.00 | 33.50 | 17.50 | 10.50 | 8.00 | 74.00 | 58.00 | 24.00 | 7.50 |
| QL01-09 | 9.00 | 2200.00 | 37.00 | 19.00 | 11.00 | 9.00 | 80.00 | 62.00 | 26.00 | 10.25 |
| QL01-10 | 10.00 | 2640.00 | 40.50 | 20.50 | 12.00 | 10.00 | 89.00 | 69.00 | 29.00 | 13.00 |
| QL01-11 | 11.00 | —— | —— | —— | —— | 11.00 | —— | —— | —— | 19.00 |
| QL01-12 | 12.00 | 3300.00 | 47.50 | 23.50 | 15.00 | 12.00 | 104.50 | 80.50 | 33.00 | 22.50 |
| QL01-14 | 14.00 | 6100.00 | 54.50 | 26.50 | 17.00 | 14.00 | 121.00 | 93.00 | 38.50 | 35.00 |
| QL01-16 | 16.00 | 8000.00 | 61.50 | 29.50 | 19.00 | 16.00 | 140.00 | 108.00 | 45.00 | 50.00 |
