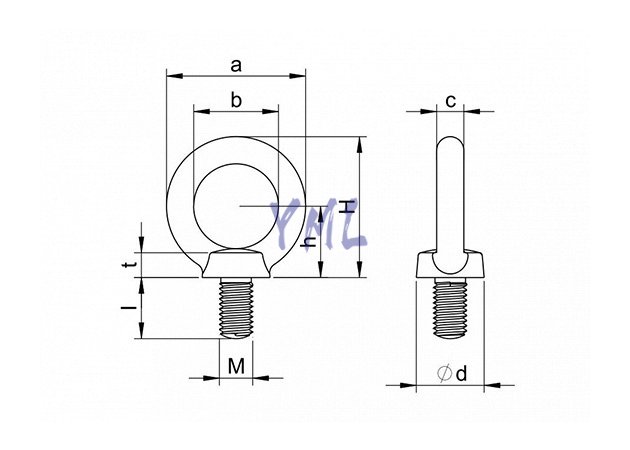

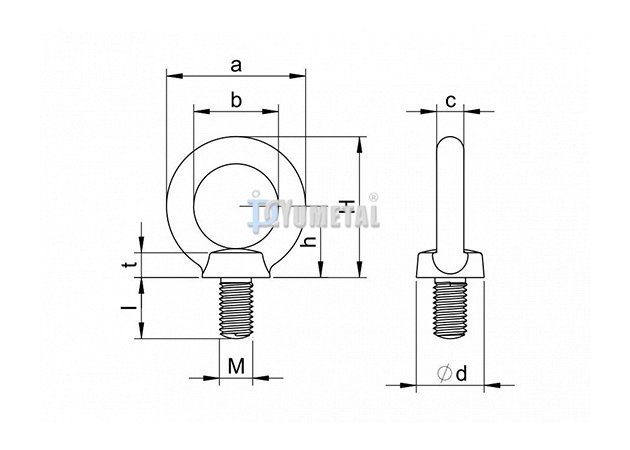

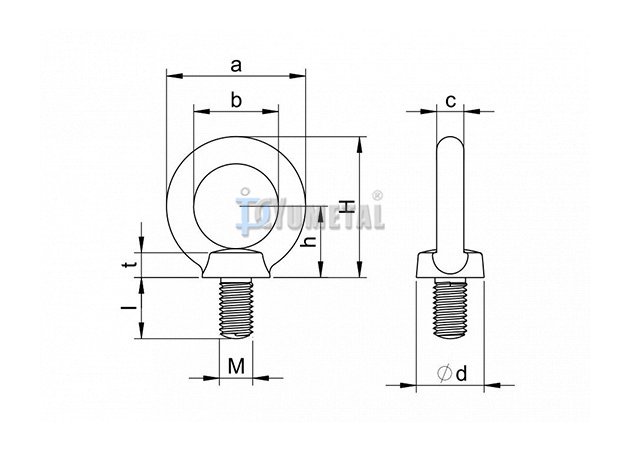

| Art No. | Size | WLL | Dimensions (mm) | |||||||
| mm | Ton | a | b | c | d | t | h | H | I | |
| EB03-08 | M8 | 0.079 | 32.60 | 20.00 | 6.30 | 16.00 | 5.00 | 17.00 | 33.30 | 15.00 |
| EB03-10 | M10 | 0.147 | 41.00 | 25.00 | 8.00 | 20.00 | 7.00 | 21.00 | 41.50 | 18.00 |
| EB03-12 | M12 | 0.216 | 50.00 | 30.00 | 10.00 | 25.00 | 9.00 | 26.00 | 51.00 | 22.00 |
| EB03-16 | M16 | 0.441 | 60.00 | 35.00 | 12.50 | 30.00 | 11.00 | 30.00 | 60.00 | 27.00 |
| EB03-20 | M20 | 0.618 | 72.00 | 40.00 | 16.00 | 30.00 | 13.00 | 35.00 | 71.00 | 30.00 |
| EB03-24 | M24 | 0.932 | 90.00 | 50.00 | 20.00 | 45.00 | 18.00 | 45.00 | 90.00 | 38.00 |
| EB03-30 | M30 | 1.470 | 110.00 | 60.00 | 25.00 | 60.00 | 22.00 | 55.00 | 110.00 | 45.00 |
| EB03-36 | M36 | 2.260 | 133.00 | 70.00 | 31.50 | 70.00 | 26.00 | 65.00 | 131.50 | 55.00 |
