EB01

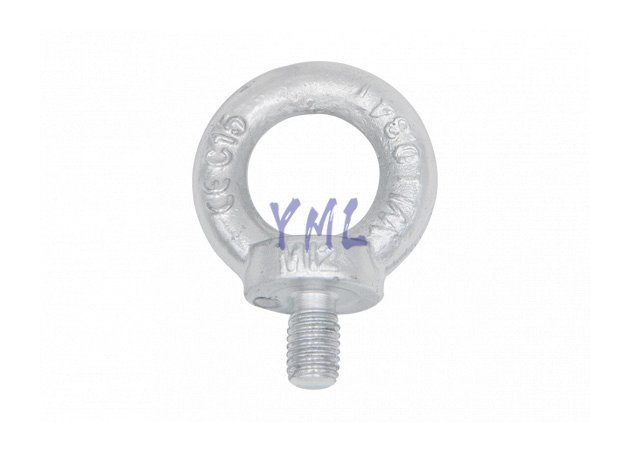

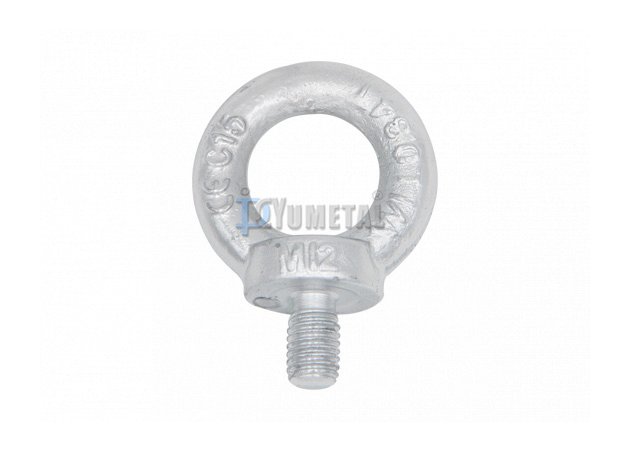

EB01 Cáncano DIN580

Consulta ahora Añadir al carrito

Parámetros Técnicos

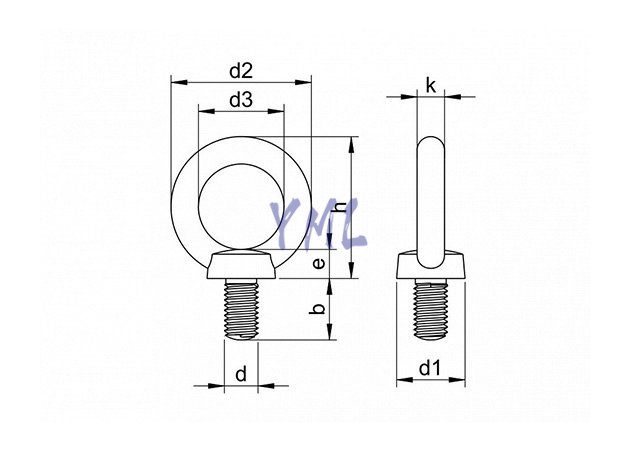

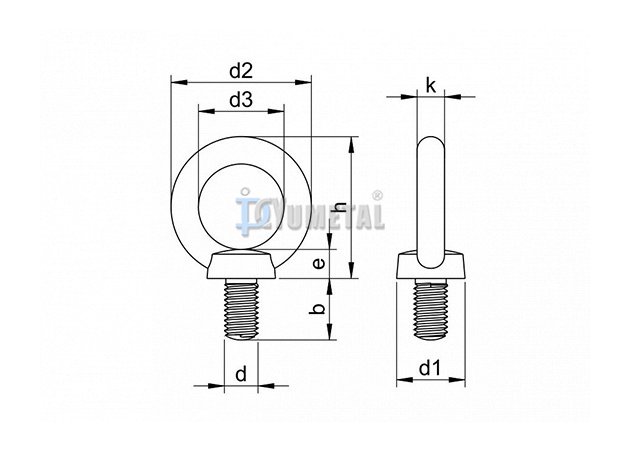

Art No.	Size	WLL	Dimensions (mm)							Weight
Art No.	mm	Ton	d1	d2	d3	b	e	h	k	kg/pc
EB01-06	M6	0.07	20	36	20	13	6	36	6	0.06
EB01-08	M8	0.14	20	36	20	13	6	36	8	0.06
EB01-10	M10	0.23	25	45	25	17	8	45	10	0.11
EB01-12	M12	0.34	30	54	30	20.5	10	53	12	0.18
EB01-14	M14	0.49	35	63	35	27	12	60	14	0.28
EB01-16	M16	0.7	35	63	35	27	12	62	14	0.285
EB01-18	M18	0.9	40	72	40	30	14	71	16	0.405
EB01-20	M20	1.2	40	72	40	30	14	71	16	0.45
EB01-22	M22	1.5	45	81	45	35	14	80	18	0.67
EB01-24	M24	1.8	50	90	50	36	18	90	20	0.87
EB01-27	M27	2.5	50	90	50	36	18	90	20	1.22
EB01-30	M30	3.6	65	108	60	45	22	109	24	1.66
EB01-33	M33	4.3	65	108	60	45	22	110	24	2.16
EB01-36	M36	5.1	75	126	70	54	26	128	28	2.65
EB01-39	M39	6.1	75	126	70	54	26	130	28	3.34
EB01-42	M42	7	85	144	80	63	30	147	32	4.03
EB01-45	M45	8	85	144	80	63	35	150	32	5.21
EB01-48	M48	8.6	100	166	90	68	35	168	38	6.38
EB01-52	M52	9.9	100	166	90	70	35	168	38	6.60
EB01-56	M56	11.5	110	184	100	78	38	187	42	8.80
EB01-64	M64	16	120	206	110	90	42	208	48	12.40
EB01-72	M72	21	150	260	140	100	50	260	60	23.30
EB01-80	M80	28	170	296	160	112	55	298	68	34.20
EB01-100	M100	40	190	330	180	130	60	330	75	49.10
