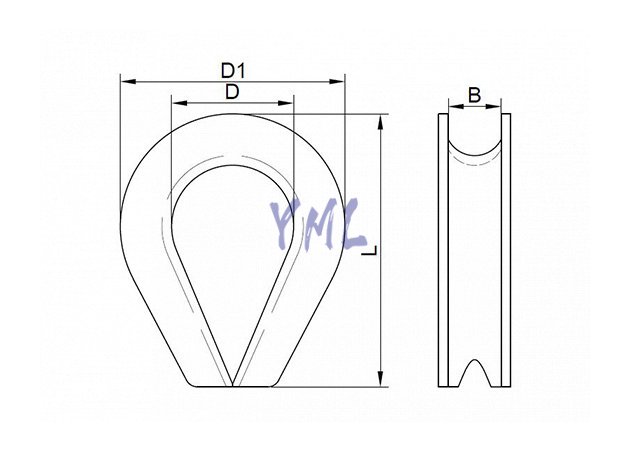

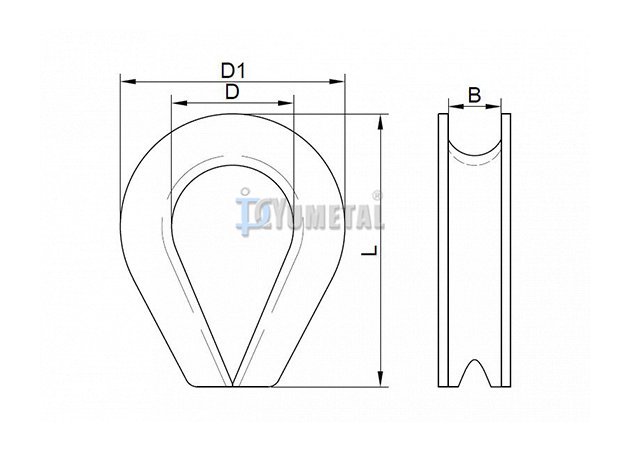

| Art No. | Size | Dimensions (mm) | Weight | |||
| mm | L | B | D | D1 | kg/pc | |
| TH10-06 | 6.00 | 36.00 | 8.00 | 27.00 | 16.00 | 0.02 |
| TH10-08 | 8.00 | 48.00 | 10.00 | 36.00 | 22.00 | 0.04 |
| TH10-09 | 9.00 | 51.00 | 11.00 | 40.00 | 25.00 | 0.05 |
| TH10-10 | 10.00 | 58.00 | 13.00 | 45.00 | 28.00 | 0.06 |
| TH10-12 | 12.00 | 68.00 | 15.00 | 54.00 | 34.00 | 0.09 |
| TH10-14 | 14.00 | 78.00 | 17.00 | 61.00 | 38.00 | 0.14 |
| TH10-16 | 16.00 | 92.00 | 20.00 | 72.00 | 44.00 | 0.19 |
| TH10-18 | 18.00 | 100.00 | 22.00 | 75.00 | 48.00 | 0.27 |
| TH10-20 | 20.00 | 112.00 | 24.00 | 86.00 | 54.00 | 0.39 |
| TH10-22 | 22.00 | 122.00 | 27.00 | 95.00 | 60.00 | 0.51 |
| TH10-24 | 24.00 | 136.00 | 29.00 | 105.00 | 65.00 | 0.63 |
| TH10-26 | 26.00 | 144.00 | 31.00 | 110.00 | 70.00 | 0.88 |
| TH10-28 | 28.00 | 156.00 | 33.00 | 120.00 | 75.00 | 1.10 |
| TH10-30 | 30.00 | 166.00 | 35.00 | 130.00 | 80.00 | 1.30 |
| TH10-32 | 32.00 | 180.00 | 38.00 | 140.00 | 85.00 | 1.60 |
| TH10-34 | 34.00 | 186.00 | 40.00 | 145.00 | 90.00 | 2.10 |
| TH10-36 | 36.00 | 196.00 | 42.00 | 150.00 | 95.00 | 2.40 |
| TH10-38 | 38.00 | 205.00 | 44.00 | 160.00 | 100.00 | 2.80 |
| TH10-40 | 40.00 | 220.00 | 46.00 | 170.00 | 105.00 | 3.20 |
| TH10-42 | 42.00 | 232.00 | 50.00 | 180.00 | 110.00 | 3.70 |
| TH10-44 | 44.00 | 242.00 | 52.00 | 190.00 | 115.00 | 4.20 |
| TH10-46 | 46.00 | 252.00 | 54.00 | 195.00 | 120.00 | 4.80 |
| TH10-48 | 48.00 | 260.00 | 56.00 | 205.00 | 125.00 | 5.40 |
| TH10-50 | 50.00 | 274.00 | 58.00 | 215.00 | 130.00 | 6.20 |
| TH10-52 | 52.00 | 284.00 | 62.00 | 220.00 | 135.00 | 7.00 |
| TH10-55 | 55.00 | 310.00 | 65.00 | 235.00 | 142.00 | 8.30 |
| TH10-58 | 58.00 | 318.00 | 68.00 | 245.00 | 150.00 | 10.20 |
| TH10-60 | 60.00 | 335.00 | 70.00 | 255.00 | 155.00 | 11.30 |
| TH10-62 | 62.00 | 348.00 | 72.00 | 265.00 | 160.00 | 12.50 |
| TH10-65 | 65.00 | 358.00 | 75.00 | 276.00 | 168.00 | 14.50 |
