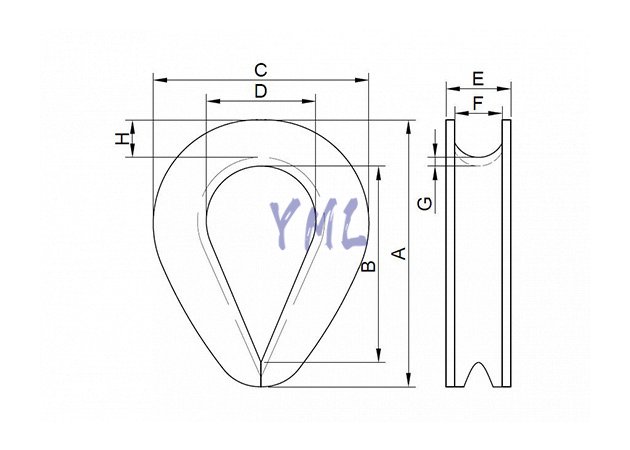

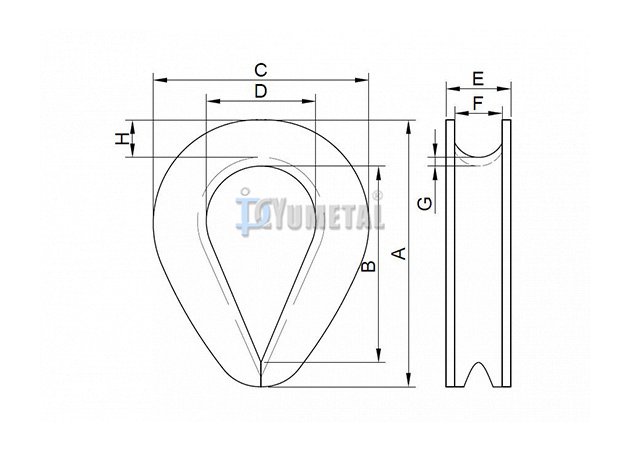

| Art No. | Size | Dimensions (inch) | ||||||||
| inch | A | B | C | D | E | F | G | K | Q | |
| TH06-5/16 | 5/16“ | 7/8” | 1-1/2“ | 1/2“ | 1-5/16” | 2-1/8" | 5/16" | 5/32" | 5/32" | 1-3/16" |
| TH06-3/8 | 3/8” | 1“ | 1-7/8” | 9/16” | 1-1/2“ | 2-1/2" | 13/32" | 1/4" | 3/16" | 1-3/8" |
| TH06-7/16 | 7/16“ | 1-1/8” | 2-1/8“ | 1-1/16“ | 1-1/2” | 2-7/8" | 1/2" | 5/16" | 3/16" | 1-1/2" |
| TH06-1/2 | 1/2” | 1-1/4“ | 2-5/16” | 1-3/16” | 1-3/4“ | 3-1/8" | 9/16" | 5/16" | 7/32" | 1-11/16" |
| TH06-9/16 | 9/16“ | 1-1/4” | 2-5/16“ | 1-3/16“ | 1-3/4” | 3-1/8" | 9/16" | 5/16" | 7/32" | 2-1/16" |
| TH06-5/8 | 5/8” | 1-5/8“ | 2-15/16” | 7/8” | 2-5/16“ | 3-7/8" | 5/8" | 11/32" | 5/16" | 2-1/4" |
| TH06-11/16 | 11/16“ | 1-3/4” | 3-1/8“ | 1-1/8“ | 2-5/8” | 4-1/4" | 3/4" | 3/8" | 5/16" | 2-3/8" |
| TH06-3/4 | 3/4” | 2“ | 3-5/8” | 1-1/8” | 2-7/8“ | 4-7/8" | 13/16" | 7/16" | 3/8" | 2-3/4" |
| TH06-13/16 | 13/16“ | 2” | 3-5/8“ | 1-1/8“ | 2-7/8” | 4-7/8" | 13/16" | 7/16" | 3/8" | 2-3/4" |
| TH06-7/8 | 7/8” | 2-1/4“ | 4” | 1-1/4” | 3-1/4“ | 5-1/4" | 7/8" | 1/2" | 3/8" | 3" |
| TH06-15/16 | 15/16“ | 2-1/2” | 4-7/16” | 15/16“ | 3-5/8” | 5-3/4" | 1" | 1/2" | 13/32" | 3-5/16" |
| TH06-1 | 1” | 2-3/4“ | 4-11/16“ | 1-1/8“ | 4-1/4“ | 6-3/8" | 1-1/16" | 9/16" | 13/32" | 3-9/16" |
| TH06-1 1/8 | 1-1/8“ | 3” | 5-1/4” | 1-3/8” | 4-3/8" | 7" | 1-1/8" | 5/8" | 1/2" | 4" |
| TH06-1 1/4 | 1-1/4” | 3-3/4“ | 6“ | 1-5/8“ | 5-1/4" | 7-3/4" | 1-5/16" | 5/8" | 1/2" | 4-3/4" |
| TH06-1 3/8 | 1-3/8“ | 4-1/8” | 6-7/8” | 1-7/8” | 6" | 9" | 1-1/2" | 3/4" | 5/8" | 5-3/8" |
| TH06-1 1/2 | 1-1/2” | 4-1/2“ | 7-3/4“ | 2-1/8“ | 6-1/2" | 10" | 1-5/8" | 15/16" | 11/16" | 5-7/8" |
| TH06-1 3/4 | 1-5/8“ | 4-1/2” | 7-3/4” | 2-3/16” | 6-1/2" | 10" | 1-7/8" | 15/16" | 11/16" | 5-7/8" |
| TH06-1 3/4 | 1-3/4” | 5“ | 9“ | 2-1/4“ | 7" | 11-1/4" | 2" | 1" | 1" | 7" |
| TH06-1 7/8 | 1-7/8“ | 5-1/4” | 9-3/4” | 2-5/8” | 7-1/2" | 12-1/2" | 2-3/8" | 1-1/8" | 1-1/8" | 7-1/2" |
| TH06-2 | 2” | 5-1/2“ | 10-1/8“ | 2-3/4” | 8" | 13" | 2-1/2" | 1-3/16" | 1-1/8" | 7-3/4" |
| TH06-2 1/8 | 2-1/8“ | 5-1/2” | 10-1/8” | 2-3/4“ | 8" | 13" | 2-1/2" | 1-3/16" | 1-1/8" | 7-3/4" |
| TH06-2 1/4 | 2-1/4” | 5-3/4“ | 10-5/8“ | 3” | 8-1/2" | 14" | 2-5/8" | 1-1/4" | 1-3/16" | 8-1/3" |
| TH06-2 1/2 | 2-1/2“ | 6-1/4” | 12-1/4” | 3-3/4“ | 9-1/2" | 16-1/4" | 2-3/4" | 1-3/4" | 1-1/4" | 8-3/4" |
