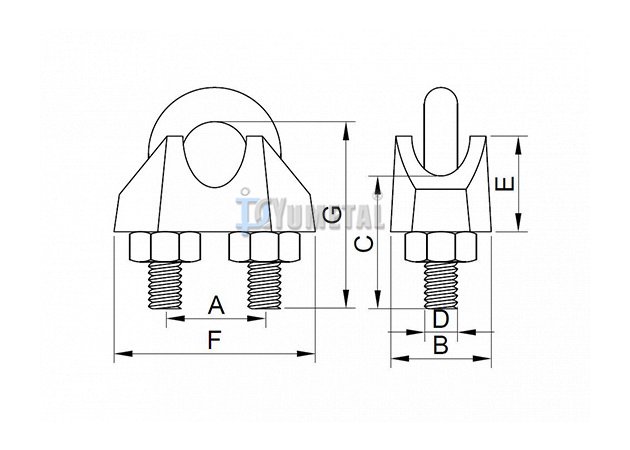

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| inch | A | B | C | D | E | F | G | kg/pc | |
| CL07-1/8 | 1/8" | 9 | 12 | 12 | 4 | 9.5 | 19 | 20 | 0.012 |
| CL07-3/16 | 3/16" | 11 | 13.5 | 14 | 5 | 10.8 | 22 | 26 | 0.017 |
| CL07-1/4 | 1/4" | 12.5 | 15.5 | 14 | 6 | 11.5 | 25 | 26 | 0.025 |
| CL07-5/16 | 5/16" | 15.5 | 18 | 16 | 6 | 16 | 31 | 31 | 0.038 |
| CL07-3/8 | 3/8" | 21 | 22 | 20 | 8 | 20 | 40 | 37 | 0.079 |
| CL07-1/2 | 1/2" | 25 | 25 | 24 | 10 | 26 | 47 | 46 | 0.144 |
| CL07-5/8 | 5/8" | 30 | 28 | 28 | 12 | 31 | 55 | 57 | 0.231 |
| CL07-11/16 | 11/16" | 33 | 28.5 | 30 | 12 | 35 | 58.5 | 64 | 0.268 |
| CL07-3/4 | 3/4" | 36.5 | 31 | 34 | 16 | 36 | 65 | 71 | 0.443 |
| CL07-7/8 | 7/8" | 40 | 36 | 38 | 16 | 43 | 72 | 77 | 0.571 |
| CL07-1 | 1" | 45 | 40 | 44 | 20 | 48 | 80 | 88 | 0.884 |
