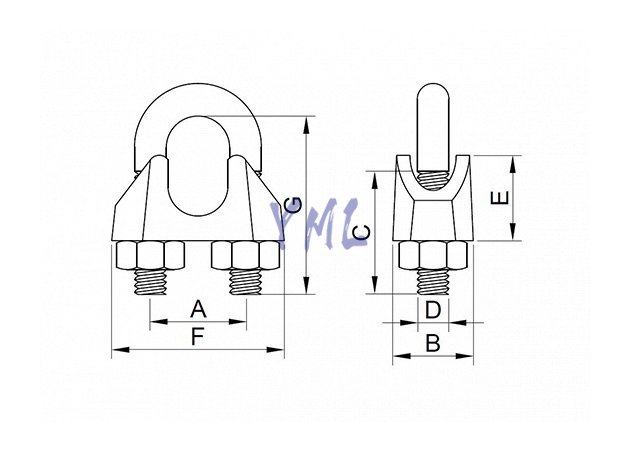

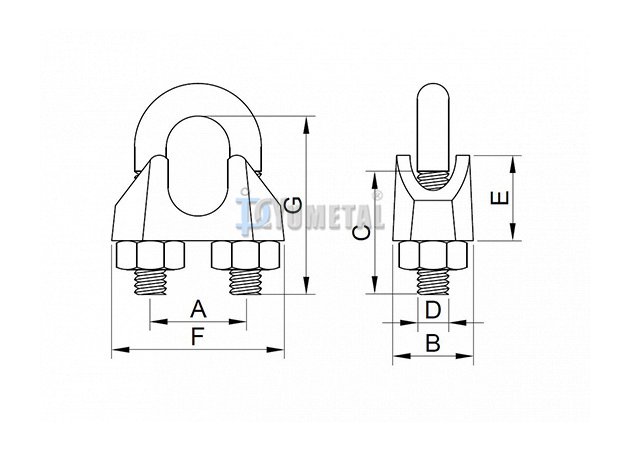

| Art No. | Size | Dimension (mm) | Weight | |||||||
| (mm) | A | B | C | D | E | F | G | H | kg/pc | |
| CL04-05 | 5 | 12 | 13 | 13 | 5 | 13 | 25 | 20 | 25 | 0.021 |
| CL04-06 | 6.5 | 14 | 16 | 17 | 6 | 14 | 30 | 26 | 32 | 0.040 |
| CL04-08 | 8 | 18 | 20 | 20 | 8 | 18 | 39 | 33 | 41 | 0.082 |
| CL04-10 | 10 | 20 | 20 | 24 | 8 | 21 | 40 | 38 | 46 | 0.092 |
| CL04-12 | 12 | 24 | 25 | 28 | 10 | 24 | 50 | 46 | 56 | 0.215 |
| CL04-13 | 13 | 27 | 28 | 30 | 12 | 29 | 55 | 52 | 64 | 0.275 |
| CL04-14 | 14 | 28 | 30 | 31 | 12 | 28 | 59 | 54 | 66 | 0.395 |
| CL04-16 | 16 | 32 | 32 | 35 | 14 | 35 | 64 | 64 | 76 | 0.43 |
| CL04-19 | 19 | 36 | 32 | 36 | 14 | 40 | 68 | 69 | 83 | 0.49 |
| CL04-22 | 22 | 40 | 34 | 40 | 16 | 44 | 74 | 80 | 96 | 0.68 |
| CL04-26 | 26 | 46 | 38 | 50 | 20 | 51 | 84 | 91 | 111 | 1.17 |
| CL04-30 | 30 | 54 | 41 | 55 | 20 | 59 | 95 | 107 | 127 | 1.40 |
| CL04-34 | 34 | 60 | 45 | 60 | 22 | 67 | 105 | 119 | 141 | 2.13 |
| CL04-40 | 40 | 68 | 49 | 65 | 24 | 77 | 117 | 135 | 159 | 2.68 |
