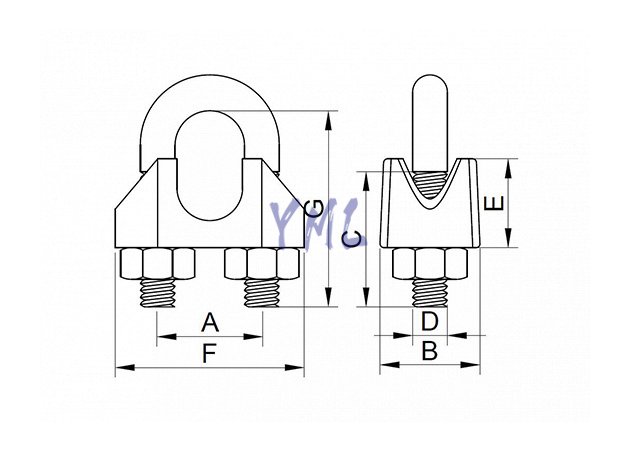

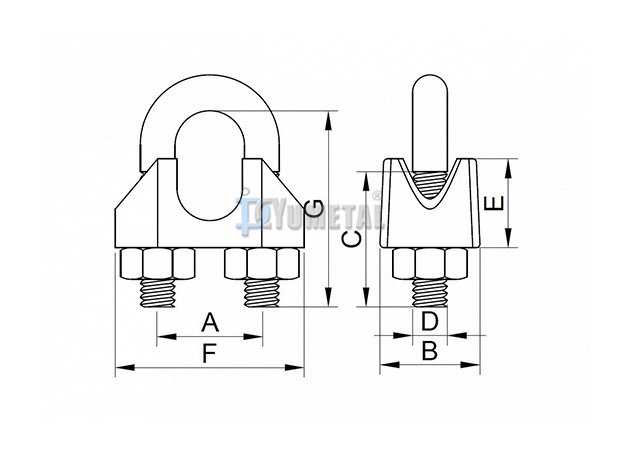

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| inch | A | B | C | D | E | F | G | kg/pc | |
| CL01-1/16 | 1/16" | —— | —— | —— | —— | —— | —— | —— | 0.008 |
| CL01-1/8 | 1/8" | 11 | 14 | 14 | 10-24 | 10.8 | 22 | 20 | 0.015 |
| CL01-3/16 | 3/16" | 13.5 | 15 | 16 | 1/4-20 | 13 | 26 | 24 | 0.030 |
| CL01-1/4 | 1/4" | 17 | 18.5 | 20 | 5/16-18 | 15 | 32 | 31.5 | 0.052 |
| CL01-5/16 | 5/16" | 18.3 | 20 | 22 | 5/16-18 | 16 | 35 | 34 | 0.060 |
| CL01-3/8 | 3/8" | 22.5 | 22 | 27 | 3/8-16 | 22 | 40.5 | 41.8 | 0.100 |
| CL01-7/16 | 7/16" | 24 | 23 | 30 | 3/8-16 | 22 | 43 | 42.8 | 0.114 |
| CL01-1/2 | 1/2" | 27 | 26 | 35 | 7/16-14 | 23.3 | 49 | 53.9 | 0.174 |
| CL01-9/16 | 9/16" | 30 | 26.5 | 40 | 1/2-13 | 27 | 52.5 | 54.7 | 0.226 |
| CL01-5/8 | 5/8" | 33 | 28.5 | 40 | 1/2-13 | 28 | 57.5 | 59.2 | 0.248 |
| CL01-3/4 | 3/4" | 34.5 | 32 | 42 | 9/16-12 | 34 | 61 | 68.7 | 0.365 |
| CL01-7/8 | 7/8" | 41 | 37 | 46 | 5/8-11 | 38 | 71 | 78 | 0.532 |
| CL01-1 | 1" | 45.5 | 42 | 55 | 5/8-11 | 43 | 77.5 | 87.5 | 0.683 |
| CL01-1 1/8 | 1-1/8" | —— | —— | —— | —— | —— | —— | —— | 1.110 |
