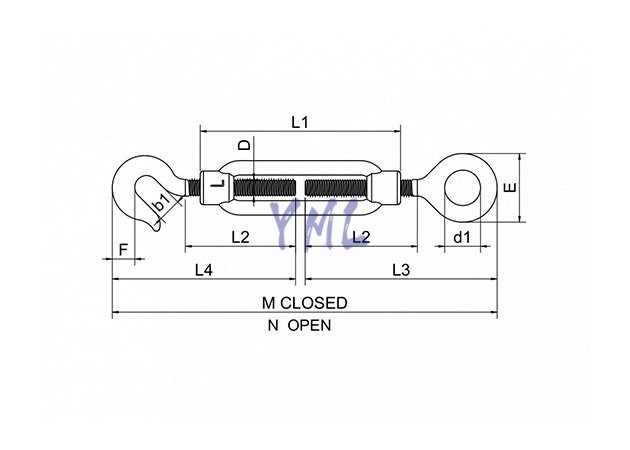

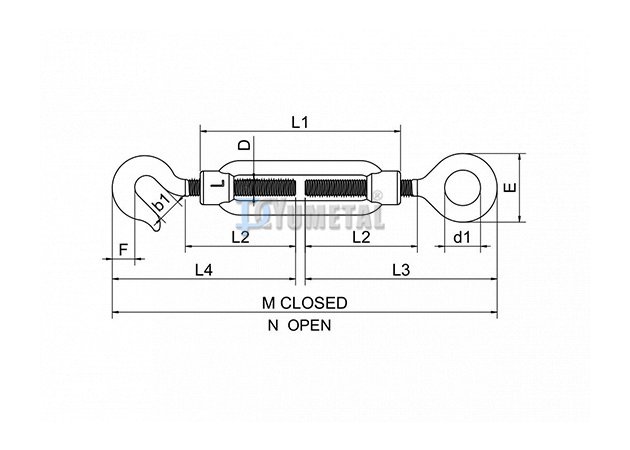

| Art No. | Size | Dimensions (mm) | Weight | ||||||||||
| (mm) | D | L1 | L2 | L3 | L4 | M(Close) | N(Open) | d1 | E | b1 | F | kg/pc | |
| TB12-05EH | 5 | 5 | 70 | 35 | 57 | 56 | 125 | 180 | 8 | 16 | 7 | 12 | 0.07 |
| TB12-06EH | 6 | 6 | 110 | 55 | 80 | 77 | 172 | 258 | 9 | 20 | 8 | 15 | 0.11 |
| TB12-08EH | 8 | 8 | 110 | 57 | 84 | 85 | 184 | 264 | 10 | 22 | 10.5 | 15 | 0.20 |
| TB12-10EH | 10 | 10 | 125 | 68 | 105 | 106 | 222 | 311 | 14 | 31 | 13 | 11 | 0.28 |
| TB12-12EH | 12 | 12 | 125 | 70 | 111 | 117 | 241 | 324 | 16 | 35 | 16 | 13 | 0.43 |
| TB12-14EH | 14 | 14 | 140 | 75 | 122 | 124 | 261 | 351 | 18 | 40 | 18 | 15 | 0.61 |
| TB12-16EH | 16 | 16 | 170 | 88 | 150 | 144 | 311 | 427 | 22 | 47 | 20 | 17 | 1.00 |
| TB12-20EH | 20 | 20 | 200 | 105 | 167 | 170 | 358 | 490 | 24 | 52 | 21 | 21 | 1.60 |
| TB12-22EH | 22 | 22 | 220 | 118 | 186 | 200 | 414 | 559 | 27 | 60 | 24 | 28 | 2.20 |
| TB12-24EH | 24 | 24 | 255 | 135 | 205 | 215 | 453 | 630 | 27 | 65 | 26 | 33 | 2.80 |
| TB12-30EH | 30 | 30 | 255 | 135 | 220 | 240 | 495 | 660 | 31 | 71 | 34 | 35 | 4.10 |
| TB12-33EH | 33 | 33 | 295 | 148 | 245 | 260 | 545 | 744 | 36 | 88 | 38 | 40 | 6.00 |
| TB12-36EH | 36 | 36 | 295 | 158 | 277 | 275 | 597 | 782 | 38 | 94 | 46 | 45 | 8.40 |
