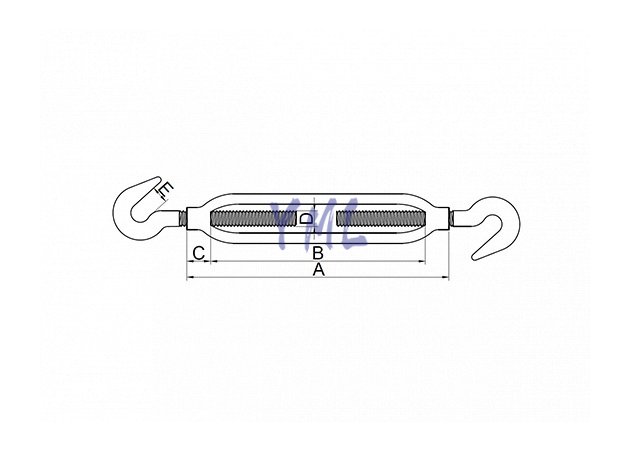

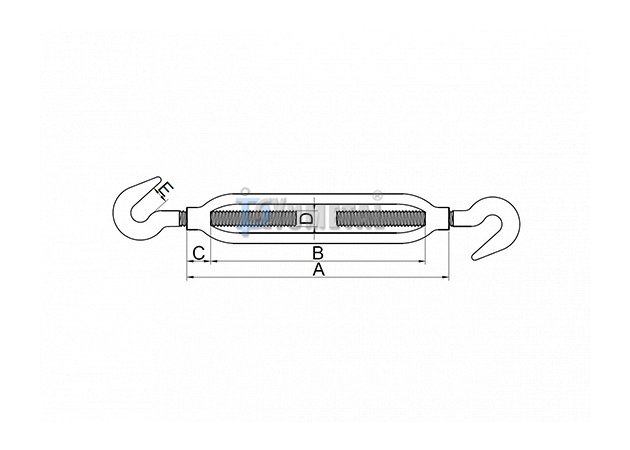

| Art No. | Size(D) | Dimensions (mm) | WLL | Weight | ||||
| mm | in | A | B | C | E | ton | kg/pc | |
| TB08-06 | 6 | 1/4" | 100 | 78.00 | 8.00 | 8.00 | 0.02 | 0.112 |
| TB08-08 | 8 | 5/16" | 125 | 100.00 | 10.00 | 9.00 | 0.04 | 0.215 |
| TB08-09 | 9 | 3/8" | 150 | 122.00 | 12.00 | 13.00 | 0.07 | 0.290 |
| TB08-12 | 12 | 1/2" | 200 | 166.00 | 15.00 | 14.00 | 0.20 | 0.570 |
| TB08-16 | 16 | 5/8" | 250 | 208.00 | 19.00 | 17.00 | 0.35 | 1.030 |
| TB08-19 | 19 | 3/4" | 300 | 252.00 | 23.00 | 20.00 | 0.52 | 1.770 |
| TB08-22 | 22 | 7/8" | 325 | 273.00 | 27.00 | 22.00 | 0.64 | 2.610 |
| TB08-25 | 25 | 1" | 350 | 290.00 | 31.00 | 26.00 | 1.00 | 3.730 |
| TB08-32 | 32 | 1-1/4" | 400 | 322.00 | 39.00 | 34.00 | 1.50 | 7.440 |
| TB08-38 | 38 | 1-1/2" | 450 | 358.00 | 46.00 | 38.00 | 2.00 | 12.000 |
