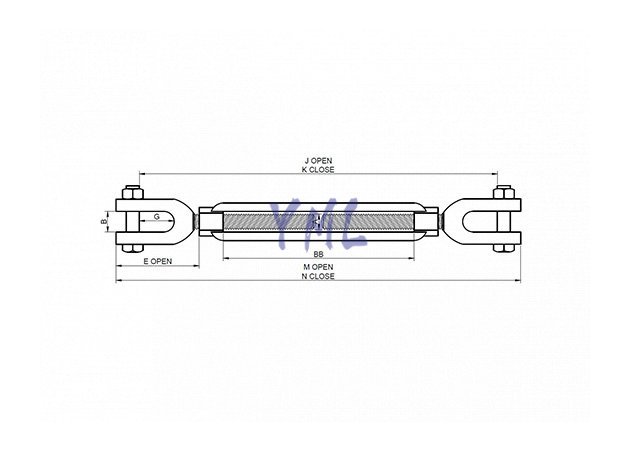

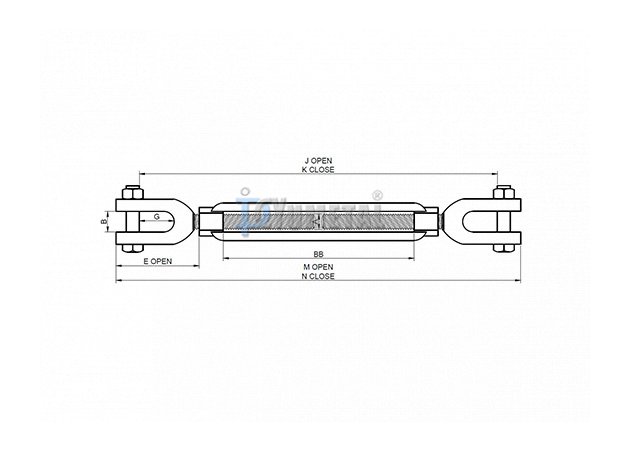

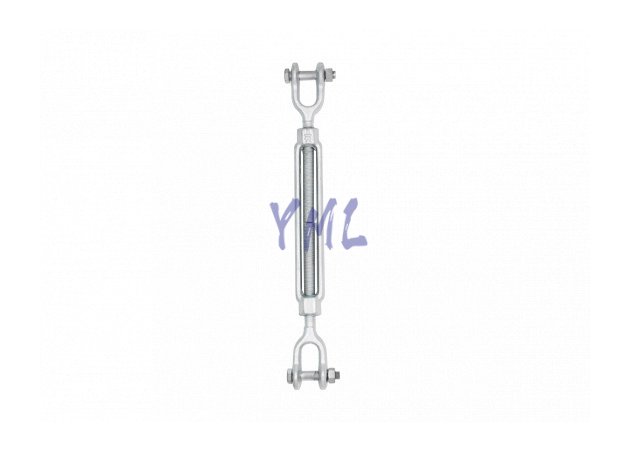

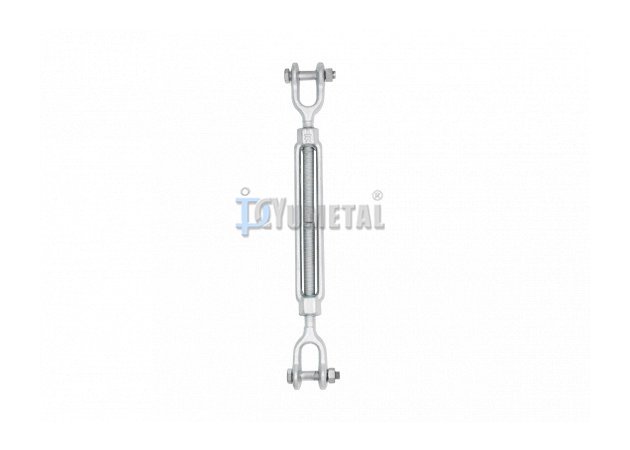

Art No. | Size | Working Load Limit | Dimensions (inch) | Weight | ||||||||
(inch) | (lbs) | A | B | E (Closed) | G | J (Open) | K (Closed) | M (Open) | N (Closed) | BB | (lbs/pc) | |
TB01-1/4×4JJ | 1/4"×4" | 500 | 0.25 | 0.45 | 1.66 | 0.64 | 11.19 | 7.19 | 12.18 | 8.18 | 4.07 | 0.37 |
TB01-5/16×4-1/2JJ | 5/16"×4-1/2" | 800 | 0.31 | 0.50 | 2.02 | 0.87 | 13.07 | 8.57 | 14.12 | 9.62 | 4.58 | 0.56 |
TB01-3/8×6JJ | 3/8"×6" | 1200 | 0.38 | 0.53 | 2.11 | 0.85 | 16.25 | 10.25 | 17.50 | 11.50 | 6.10 | 0.85 |
TB01-1/2×6JJ | 1/2"×6" | 2200 | 0.50 | 0.64 | 3.22 | 1.07 | 18.65 | 12.65 | 20.14 | 14.14 | 6.03 | 1.82 |
TB01-1/2×9JJ | 1/2"×9" | 2200 | 0.50 | 0.64 | 3.20 | 1.07 | 24.94 | 15.94 | 26.43 | 17.43 | 9.36 | 2.29 |
TB01-1/2×12JJ | 1/2"×12" | 2200 | 0.50 | 0.64 | 3.20 | 1.07 | 30.94 | 18.94 | 32.43 | 20.43 | 12.36 | 2.71 |
TB01-5/8×6JJ | 5/8"×6" | 3500 | 0.63 | 0.79 | 3.90 | 1.32 | 19.74 | 13.74 | 21.82 | 15.82 | 6.03 | 3.21 |
TB01-5/8×9JJ | 5/8"×9" | 3500 | 0.63 | 0.79 | 3.89 | 1.32 | 26.08 | 17.08 | 28.16 | 19.16 | 9.39 | 3.95 |
TB01-5/8×12JJ | 5/8"×12" | 3500 | 0.63 | 0.79 | 3.89 | 1.32 | 32.08 | 20.08 | 34.16 | 22.16 | 12.39 | 4.58 |
TB01-3/4×6JJ | 3/4"×6" | 5200 | 0.75 | 0.97 | 4.71 | 1.52 | 21.09 | 15.09 | 23.68 | 17.68 | 6.13 | 4.80 |
TB01-3/4×9JJ | 3/4"×9" | 5200 | 0.75 | 0.97 | 4.68 | 1.52 | 27.49 | 18.49 | 30.08 | 21.08 | 9.59 | 5.85 |
TB01-3/4×12JJ | 3/4"×12" | 5200 | 0.75 | 0.97 | 4.68 | 1.52 | 33.49 | 21.49 | 36.08 | 24.08 | 12.59 | 6.72 |
TB01-3/4×18JJ | 3/4"×18" | 5200 | 0.75 | 0.97 | 4.71 | 1.52 | 45.49 | 27.49 | 48.08 | 30.08 | 18.53 | 8.45 |
TB01-7/8×12JJ | 7/8"×12" | 7200 | 0.88 | 1.16 | 5.50 | 1.77 | 34.65 | 22.65 | 37.62 | 25.62 | 12.16 | 9.37 |
TB01-7/8×18JJ | 7/8"×18" | 7200 | 0.88 | 1.16 | 5.50 | 1.77 | 47.12 | 29.12 | 50.09 | 32.09 | 18.63 | 11.80 |
TB01-1×6JJ | 1"×6" | 10000 | 1.00 | 1.34 | 6.09 | 2.05 | 23.82 | 17.82 | 27.18 | 21.18 | 6.18 | 10.40 |
TB01-1×12JJ | 1"×12" | 10000 | 1.00 | 1.34 | 6.09 | 2.05 | 35.82 | 23.82 | 39.18 | 27.18 | 12.18 | 13.80 |
TB01-1×18JJ | 1"×18" | 10000 | 1.00 | 1.34 | 6.09 | 2.05 | 47.82 | 29.82 | 51.18 | 33.18 | 18.18 | 17.10 |
TB01-1×24JJ | 1"×24" | 10000 | 1.00 | 1.34 | 6.06 | 2.05 | 60.42 | 36.42 | 63.78 | 39.78 | 24.84 | 21.00 |
TB01-1-1/4×12JJ | 1-1/4"×12" | 15200 | 1.25 | 1.84 | 8.09 | 2.82 | 39.37 | 27.37 | 43.58 | 31.58 | 12.06 | 21.90 |
TB01-1-1/4×18JJ | 1-1/4"×18" | 15200 | 1.25 | 1.84 | 8.09 | 2.82 | 51.37 | 33.37 | 55.58 | 37.58 | 18.06 | 25.90 |
TB01-1-1/4×24JJ | 1-1/4"×24" | 15200 | 1.25 | 1.84 | 8.09 | 2.82 | 63.93 | 39.93 | 68.14 | 44.14 | 24.62 | 29.80 |
TB01-1-1/2×12JJ | 1-1/2"×12" | 21400 | 1.50 | 2.06 | 8.93 | 2.81 | 40.76 | 28.76 | 45.68 | 33.68 | 12.32 | 32.60 |
TB01-1-1/2×18JJ | 1-1/2"×18" | 21400 | 1.50 | 2.06 | 8.93 | 2.81 | 52.76 | 34.76 | 57.68 | 39.68 | 18.32 | 38.00 |
TB01-1-1/2×24JJ | 1-1/2"×24" | 21400 | 1.50 | 2.06 | 8.93 | 2.81 | 65.38 | 41.38 | 70.30 | 46.30 | 24.94 | 43.50 |
TB01-1-3/4×18JJ | 1-3/4"×18" | 28000 | 1.75 | 2.60 | 9.36 | 3.35 | 53.35 | 35.35 | 59.16 | 41.16 | 18.37 | 53.50 |
TB01-1-3/4×24JJ | 1-3/4"×24" | 28000 | 1.75 | 2.60 | 9.36 | 3.35 | 65.35 | 41.35 | 71.16 | 47.16 | 24.37 | 61.10 |
TB01-2×24JJ | 2"×24" | 37000 | 2.00 | 2.62 | 11.80 | 3.74 | 69.64 | 45.64 | 76.72 | 52.72 | 24.48 | 96.30 |
TB01-2-1/2×24JJ | 2-1/2"×24" | 60000 | 2.50 | 3.06 | 13.26 | 4.44 | 72.97 | 48.97 | 82.18 | 58.18 | 24.60 | 167.00 |
TB01-2-3/4×24JJ | 2-3/4"×24" | 75000 | 2.75 | 3.69 | 14.92 | 4.19 | 74.75 | 50.75 | 85.50 | 61.50 | 24.65 | 199.00 |
*Proof Load is 2.5 times Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
