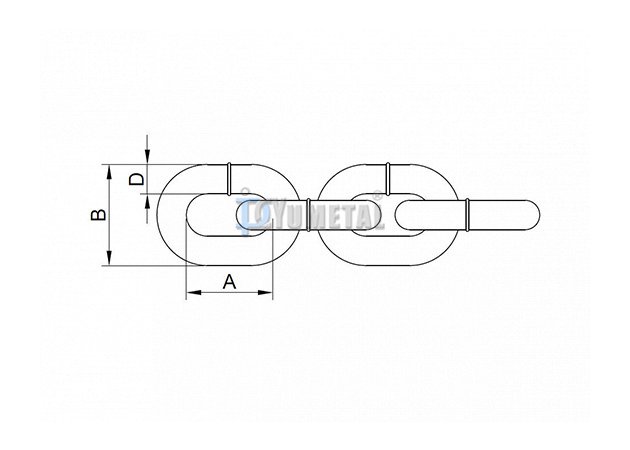

| Art No. | Chain Size | Working Load | Link Dimension | Links Per M | Length Per 100kg | |||
| Dia | Inside Length | Outside Width | B.F. | H.D.G | ||||
| mm | MT | mm | mm | mm | PC | m | m | |
| CH20-05 | 5 | 0.24 | 5 | 14.6 | 17.2 | 68.3 | 174 | 167 |
| CH20-06 | 6 | 0.32 | 6.3 | 18.9 | 21.5 | 52.9 | 114 | 108 |
| CH20-08 | 8 | 0.53 | 8 | 24.0 | 27.5 | 41.7 | 70.5 | 67 |
| CH20-10 | 10 | 0.83 | 10 | 29.5 | 33.5 | 33.9 | 45.2 | 42.9 |
| CH20-12 | 12 | 1.50 | 12.5 | 37.5 | 40.6 | 26.7 | 29.5 | 28 |
| CH20-13 | 13 | 1.60 | 13 | 38.8 | 44.6 | 25.8 | 26.9 | 26.3 |
| CH20-16 | 16 | 2.31 | 16 | 47.0 | 54.0 | 21.3 | 17.6 | 16.7 |
| CH20-20 | 20 | 3.45 | 20 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| CH20-22 | 22 | 4.55 | 22 | 64.9 | 77.0 | 15.4 | 9.5 | 9.2 |
| CH20-24 | 24 | 5.43 | 24 | 71.0 | 82.2 | 14.1 | 7.8 | 7.6 |
