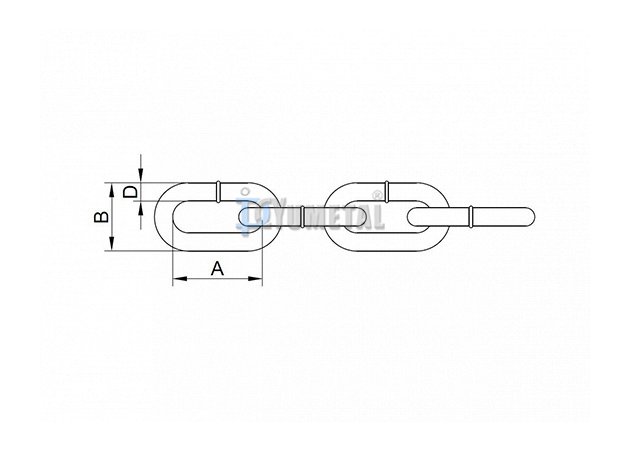

| Art No. | Link Specification | Test Load | Breaking Load | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||||
| in | mm | mm | mm | kg | kg | B.F. | H.D.G | |
| CH19-1/8 | 1/8" | 3.20 | 23 | 12.0 | 200 | 400 | 10.40 | 10.70 |
| CH19-5/32 | 5/32" | 4.00 | 27 | 15.0 | 300 | 600 | 16.60 | 17.50 |
| CH19-3/16 | 3/16" | 4.70 | 31 | 17.0 | 400 | 800 | 22.40 | 23.30 |
| CH19-7/32 | 7/32" | 5.50 | 32 | 19.0 | 550 | 1100 | 32.00 | 33.00 |
| CH19-1/4 | 1/4" | 6.35 | 33 | 21.0 | 750 | 1500 | 43.50 | 44.80 |
| CH19-5/16 | 5/16" | 7.94 | 48 | 31.0 | 1200 | 2400 | 68.00 | 70.00 |
| CH19-3/8 | 3/8" | 9.50 | 60 | 37.0 | 1700 | 3400 | 96.00 | 99.00 |
| CH19-7/16 | 7/16" | 11.11 | 71 | 41.0 | 2300 | 4600 | 126.00 | 129.00 |
| CH19-1/2 | 1/2" | 12.70 | 85 | 48.5 | 3000 | 6000 | 167.00 | 172.00 |
| CH19-5/8 | 5/8" | 15.80 | 114 | 61.5 | 4700 | 9400 | 256.00 | 264.00 |
| CH19-3/4 | 3/4" | 19.00 | 125 | 75.0 | 6800 | 13600 | 381.00 | 392.00 |
| CH19-7/8 | 7/8" | 22.20 | 140 | 88.0 | 9250 | 18500 | 527.00 | 543.00 |
| CH19-1 | 1" | 25.40 | 155 | 100.0 | 12150 | 24300 | 696.00 | 716.00 |
