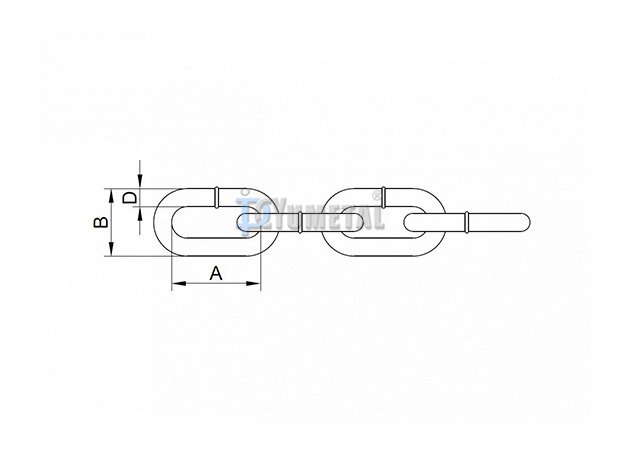

| Art No. | Link Specification | Test Load | Breaking Load | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||||
| in | mm | mm | mm | kg | kg | B.F. | H.D.G | |
| CH18-1/8 | 1/8" | 3.20 | 20 | 12 | 200 | 400 | 10.80 | 11.00 |
| CH18-5/32 | 5/32" | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| CH18-3/16 | 3/16" | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| CH18-7/32 | 7/32" | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| CH18-1/4 | 1/4" | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| CH18-5/16 | 5/16" | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| CH18-3/8 | 3/8" | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| CH18-7/16 | 7/16" | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| CH18-1/2 | 1/2" | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| CH18-5/8 | 5/8" | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| CH18-3/4 | 3/4" | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| CH18-7/8 | 7/8" | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| CH18-1 | 1" | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
