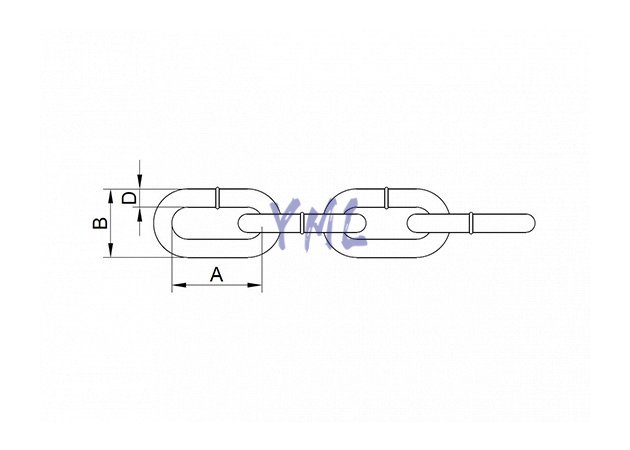

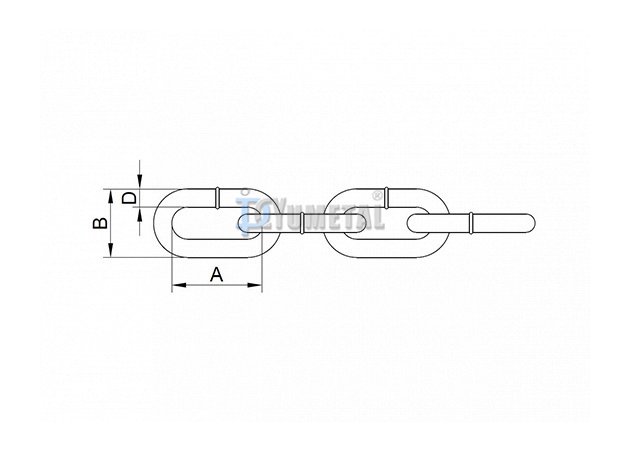

| Art No. | Link Specification | Test Load | Breaking Load | Net Weight | ||||
| Dia | Inside Length | Outside Width | kg/200ft | |||||
| in | mm | mm | mm | kg | kg | B.F. | H.D.G | |
| CH17-1/8 | 1/8" | 3.20 | 16 | 12 | 200 | 400 | 11.40 | 11.74 |
| CH17-5/32 | 5/32" | 4.00 | 18.5 | 14.5 | 300 | 600 | 18.60 | 19.00 |
| CH17-3/16 | 3/16" | 4.70 | 19 | 17 | 400 | 800 | 26.20 | 27.00 |
| CH17-7/32 | 7/32" | 5.50 | 20 | 19 | 550 | 1100 | 36.80 | 38.00 |
| CH17-1/4 | 1/4" | 6.35 | 22 | 21 | 750 | 1500 | 50.00 | 51.50 |
| CH17-5/16 | 5/16" | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 80.00 | 82.40 |
| CH17-3/8 | 3/8" | 9.50 | 30 | 32 | 1700 | 3400 | 122.00 | 125.70 |
| CH17-7/16 | 7/16" | 11.11 | 34 | 36 | 2300 | 4600 | 164.00 | 169.00 |
| CH17-1/2 | 1/2" | 12.70 | 39 | 43 | 3000 | 6000 | 210.00 | 216.00 |
| CH17-5/8 | 5/8" | 15.80 | 45 | 53 | 4700 | 9400 | 334.00 | 344.00 |
| CH17-3/4 | 3/4" | 19.00 | 55 | 63 | 6800 | 13600 | 485.00 | 499.00 |
| CH17-7/8 | 7/8" | 22.20 | 64 | 74 | 9250 | 18500 | 656.00 | 675.00 |
| CH17-1 | 1" | 25.40 | 73 | 84 | 12150 | 24300 | 870.00 | 896.00 |
