CH16

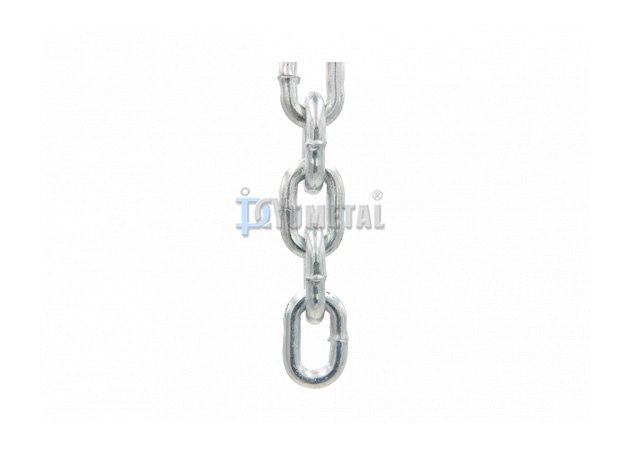

CH16 Cadena DIN766

Consulta ahora Añadir al carrito

Parámetros Técnicos

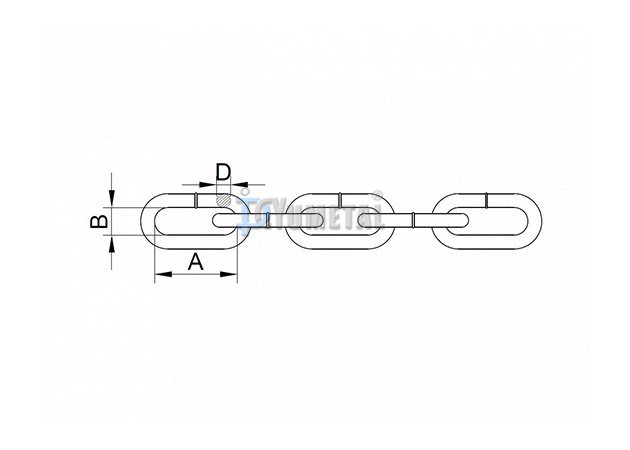

Art No.	Diameter		Inside Length			Inside Width	Outside Width	Length per 11 Links			Breaking Load	Weight
	D		A			B		Length per 11 Links			Breaking Load
	mm	±mm	mm	+mm	-mm	mm	mm	mm	+mm	-mm	kn	kg/M
CH16-02	2	0.2	12	0.2	0.2	3.5	7.5	13.2	1.0	0.5	1.25	0.07
CH16-03	3	0.2	16	0.2	0.2	4.2	11	176	1.4	0.7	4.00	0.16
CH16-04	4	0.2	16	0.3	0.2	5	13.7	176	2.1	1.1	8.00	0.32
CH16-05	5	0.2	18.5	0.4	0.2	6	17	203.5	2.4	1.2	12.50	0.50
CH16-06	6	0.2	18.5	0.4	0.2	7.2	20.2	203.5	2.4	1.2	16.00	0.80
CH16-07	7	0.3	22	0.4	0.2	8.4	23.8	242	3.0	1.4	25.00	1.10
CH16-08	8	0.3	24	0.4	0.2	9.6	27.2	264	3.2	1.5	32.00	1.40
CH16-09	9	0.4	27	0.5	0.3	10.8	30.6	297	3.6	1.8	40.00	1.80
CH16-10	10	0.4	28	0.5	0.3	12	34	308	3.7	1.9	50.00	2.20
CH16-11	11	0.4	31	0.5	0.3	13.2	37.4	341	4.0	2.0	63.00	2.70
CH16-12	12	0.3	36	0.6	0.3	14.4	40.8	396	4.4	2.2	72.40	3.10
CH16-13	13	0.5	36	0.6	0.3	15.6	44.2	396	4.6	2.4	80.00	3.80
CH16-14	14	0.6	41	0.7	0.4	16.8	47.6	451	5.4	2.7	100.00	4.40
CH16-16	16	0.6	45	0.8	0.4	19.2	54.4	495	6.0	3.0	125.00	5.70
CH16-18	18	0.9	50	0.8	0.4	21.6	61.2	550	6.6	3.3	160.00	7.30
CH16-19	19	0.4	53	0.9	0.4	22.8	64.6	583	7.0	3.7	180.00	7.97
CH16-20	20	1.0	56	1.0	0.5	24	68	616	7.4	3.7	200.00	9.00
CH16-22	22	1.2	62	1.1	0.5	26.4	75	682	8.0	4.0	243.20	11.00
CH16-23	23	1.2	64	1.1	0.5	27.6	78.2	704	8.4	4.2	250.00	12.00
CH16-26	26	1.3	73	1.2	0.6	31.2	88.4	803	9.6	4.8	320.00	15.00
