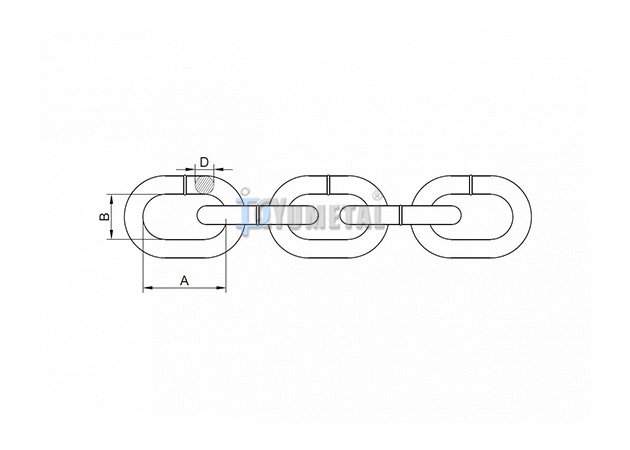

| Art No. | Trade Size | Diameter | Inside Length | Inside Width | Working Load Limit(max) | Proof Test(min) | Min Breaking Load | |||||||
| D | A | B | ||||||||||||
| mm | No. | mm | in | mm | inch | mm | inch | kg | lb | kn | lb | kn | lb | |
| CH10-4.9 | 4.9 | 2/0 | 4.9 | 0.192 | 22.2 | 0.875 | 11.9 | 0.47 | 204 | 450 | 4.00 | 900 | 8.01 | 1800 |
| CH10-5.5 | 5.5 | 4/0 | 5.5 | 0.218 | 22.2 | 0.875 | 12.7 | 0.50 | 272 | 600 | 5.34 | 1200 | 10.68 | 2400 |
