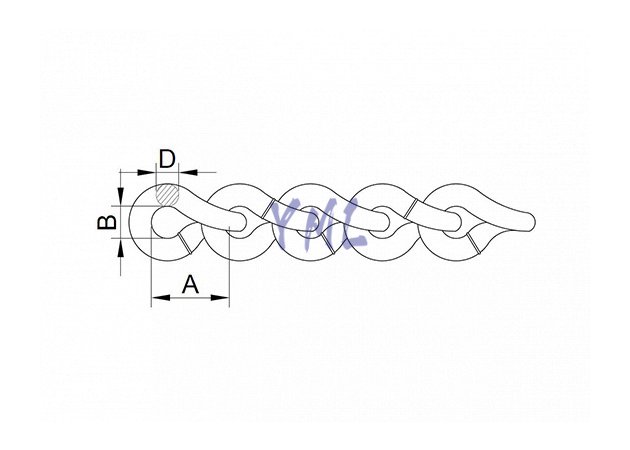

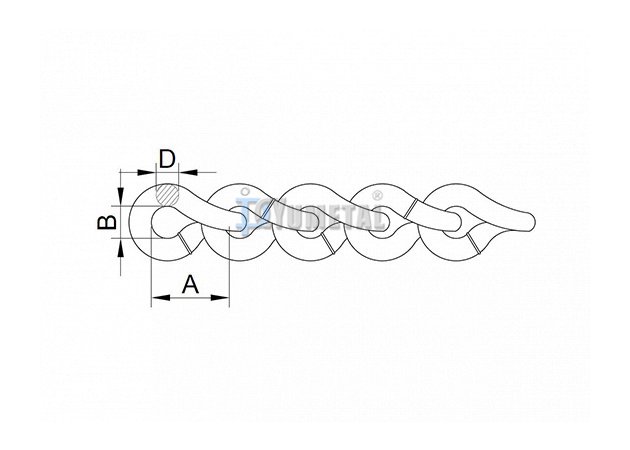

| Art No. | Trade Size | Diameter | Inside Length | Inside Width | Working Load Limit(max) | Min Breaking Load | ||||||
| D | A | B | ||||||||||
| mm | No. | mm | in | mm | inch | mm | inch | kg | lb | kn | lb | |
| CH09-3.0 | 3.0 | 4 | 3.0 | 0.120 | 13.1 | 0.52 | 4.3 | 0.17 | 93 | 205 | 3.64 | 820 |
| CH09-3.4 | 3.4 | 3 | 3.4 | 0.135 | 14.2 | 0.56 | 5.1 | 0.20 | 116 | 255 | 4.53 | 1020 |
| CH09-3.8 | 3.8 | 2 | 3.8 | 0.148 | 14.7 | 0.58 | 5.3 | 0.21 | 141 | 310 | 5.51 | 1240 |
| CH09-4.1 | 4.1 | 1 | 4.1 | 0.162 | 15.0 | 0.59 | 6.1 | 0.24 | 168 | 370 | 6.58 | 1480 |
| CH09-4.5 | 4.5 | 1/0 | 4.5 | 0.177 | 17.2 | 0.68 | 6.6 | 0.26 | 200 | 440 | 7.82 | 1760 |
| CH09-4.9 | 4.9 | 2/0 | 4.9 | 0.192 | 18.5 | 0.73 | 7.1 | 0.28 | 236 | 520 | 9.24 | 2080 |
| CH09-5.3 | 5.3 | 3/0 | 5.3 | 0.207 | 20.3 | 0.80 | 7.9 | 0.31 | 274 | 605 | 10.76 | 2420 |
| CH09-5.5 | 5.5 | 4/0 | 5.5 | 0.218 | 22.5 | 0.89 | 8.1 | 0.32 | 304 | 670 | 11.91 | 2680 |
| CH09-6.4 | 6.4 | 5/0 | 6.4 | 0.250 | 25.3 | 1.00 | 9.4 | 0.37 | 400 | 880 | 15.64 | 3520 |
