| Art No. | Nominal Diameter | Nominal Tensile Strength | Approx. Weight | ||||
| 1570 N/mm2 | 1770 N/mm2 | ||||||
| Minimum Breaking Strength (KN) | kg/m | ||||||

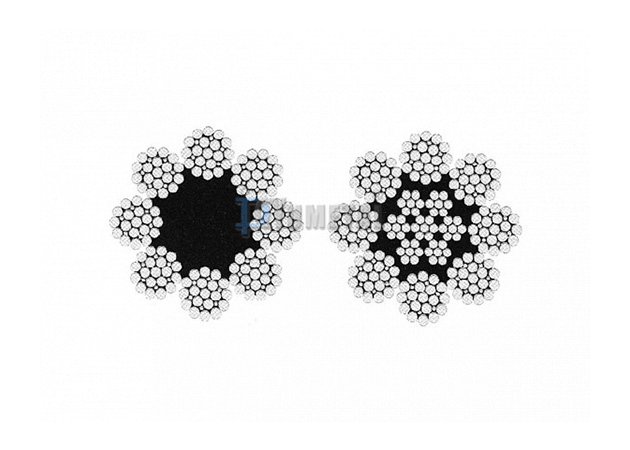

| mm | FC | IWRC | FC | IWRC | FC | IWRC | |
| WP14-10 | 10 | 46.1 | 54.4 | 52.0 | 61.3 | 0.357 | 0.435 |
| WP14-11 | 11 | 55.8 | 65.8 | 52.9 | 74.2 | 0.431 | 0.526 |
| WP14-12 | 12 | 66.4 | 78.3 | 74.8 | 88.3 | 0.531 | 0.626 |
| WP14-13 | 13 | 77.9 | 91.9 | 87.8 | 104.0 | 0.602 | 0.735 |
| WP14-14 | 14 | 90.3 | 107.0 | 102.0 | 120.0 | 0.699 | 0.852 |
| WP14-16 | 16 | 118.0 | 139.0 | 133.0 | 157.0 | 0.913 | 1.110 |
| WP14-18 | 18 | 149.0 | 176.0 | 168.0 | 199.0 | 1.160 | 1.410 |
| WP14-20 | 20 | 184.0 | 218.0 | 208.0 | 245.0 | 1.430 | 1.740 |
| WP14-22 | 22 | 223.0 | 263.0 | 252.0 | 297.0 | 1.730 | 2.100 |
| WP14-24 | 24 | 266.0 | 313.0 | 299.0 | 353.0 | 2.050 | 2.510 |
| WP14-26 | 26 | 312.0 | 368.0 | 351.0 | 414.0 | 2.410 | 2.940 |
| WP14-28 | 28 | 361.0 | 426.0 | 407.0 | 481.0 | 2.790 | 3.410 |
| WP14-32 | 32 | 472.0 | 557.0 | 532.0 | 628.0 | 3.650 | 4.450 |
| WP14-36 | 36 | 597.0 | 70.0 | 673.0 | 795.0 | 4.620 | 5.640 |
