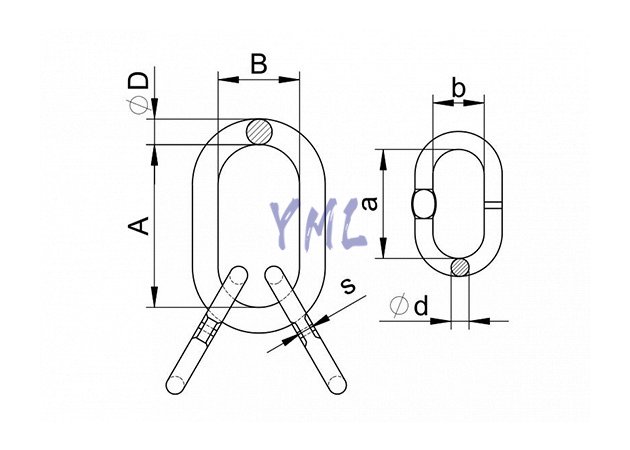

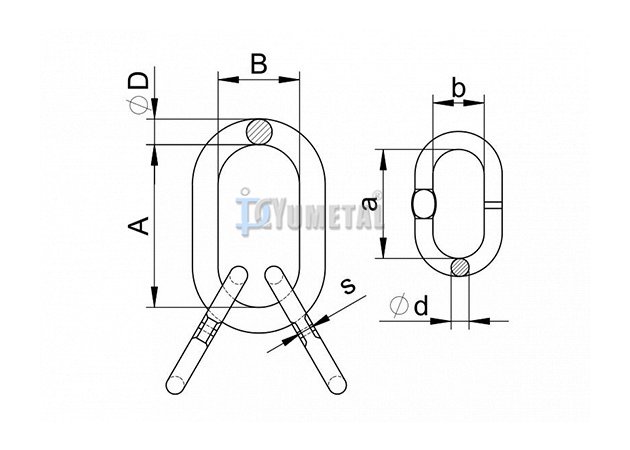

| Art No. | Size inch | WLL ton | Dimensions (mm) | Weight kg/pc | ||||||
| A | B | D | a | b | d | s | ||||
| RN06-1/2 | 1/2 | 2.4 | 100 | 60 | 14 | 85 | 40 | 12 | 6 | 0.82 |
| RN06-11/16 | 11/16 | 3.2 | 160 | 90 | 18 | 100 | 60 | 14 | 7.6 | 1.60 |
| RN06-5/8 | 5/8 | 3.2 | 160 | 90 | 18 | 100 | 60 | 14 | 7.6 | 1.60 |
| RN06-3/4 | 3/4 | 4.2 | 160 | 90 | 20 | 100 | 60 | 14 | 7.6 | 1.95 |
| RN06-7/8 | 7/8 | 8 | 180 | 100 | 22 | 150 | 70 | 18 | 8.4 | 3.16 |
| RN06-1-1/8 | 1-1/8 | 12 | 270 | 140 | 28 | 160 | 90 | 22 | 13.5 | 6.75 |
| RN06-1-1/4 | 1-1/4 | 17 | 270 | 140 | 32 | 180 | 100 | 25 | 16.5 | 9.31 |
| RN06-1-1/2 | 1-1/2 | 25 | 300 | 160 | 40 | 270 | 140 | 31 | 19 | 18.40 |
| RN06-1-3/4 | 1-3/4 | 31.5 | 340 | 180 | 45 | 285 | 155 | 36 | 22 | 26.60 |
| RN06-2 | 2 | 45 | 350 | 190 | 51 | 340 | 180 | 45 | 25 | 42.91 |
