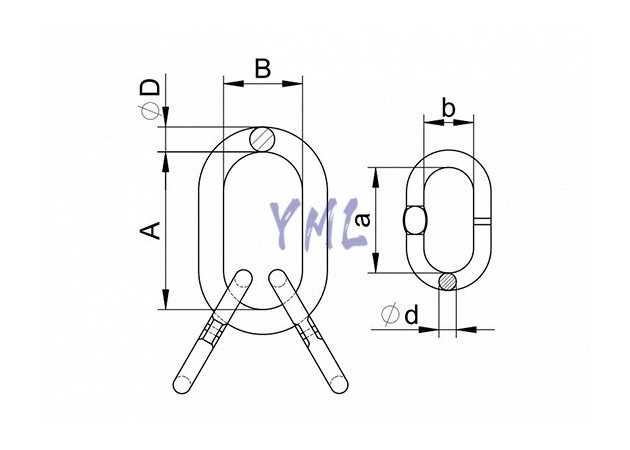

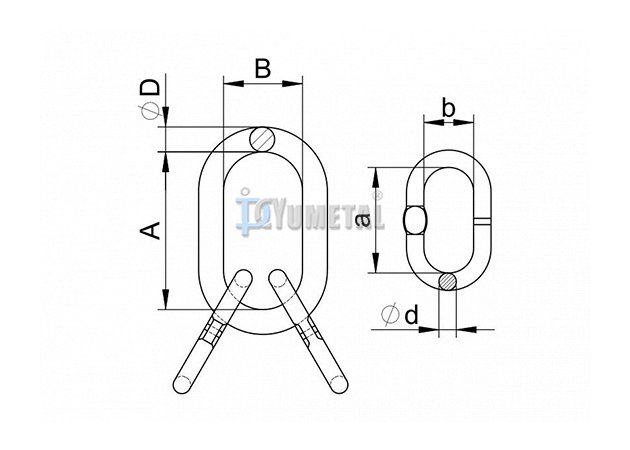

| Art No. | Size mm | WLL ton | Dimensions (mm) | Weight kg/pc | |||||
| A | B | D | a | b | d | ||||
| RN05-06 | 6-8 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 1.18 |
| RN05-07 | 7-8 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 1.24 |
| RN05-08 | 8-8 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 2.20 |
| RN05-10 | 10-8 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 3.40 |
| RN05-13 | 13-8 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 6.10 |
| RN05-16 | 16-8 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 9.98 |
| RN05-18 | 18-8 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | 18.90 |
| RN05-20 | 20-8 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 22.60 |
| RN05-22 | 22-8 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | 25.20 |
| RN05-26 | 26-8 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | 34.26 |
| RN05-28 | 28-8 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | 47.11 |
| RN05-32 | 32-8 | 63 | 460 | 250 | 72 | 200 | 110 | 50 | 66.46 |
