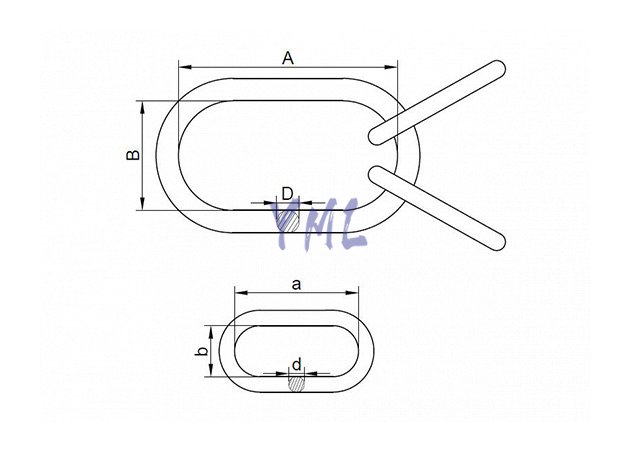

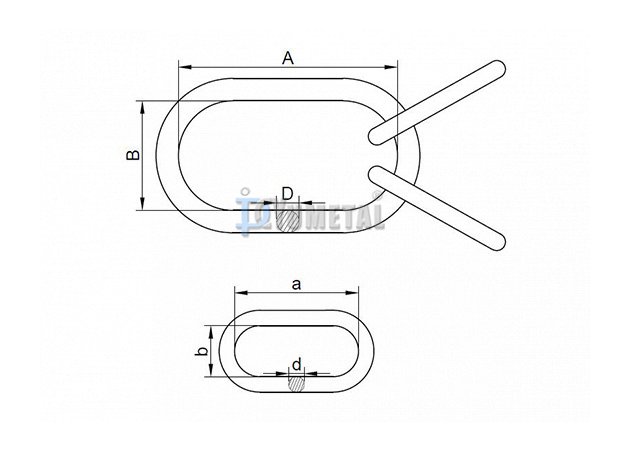

| Art No. | Size inch | WLL ton | Dimensions (mm) | Weight kg/pc | |||||
| A | B | D | a | b | d | ||||
| RN04-3/4 | 3/4 | 4.2 | 140 | 70 | 20 | 85 | 40 | 14 | 1.55 |
| RN04-7/8 | 7/8 | 5.3 | 160 | 95 | 22 | 85 | 40 | 14 | 2.18 |
| RN04-1 | 1 | 8 | 178 | 89 | 25 | 100 | 60 | 18 | 3.29 |
| RN04-1-1/4 | 1-1/4 | 14 | 220 | 110 | 32 | 100 | 60 | 22 | 7.18 |
| RN04-1-1/2 | 1-1/2 | 21.2 | 267 | 135 | 38 | 180 | 100 | 28 | 12.91 |
| RN04-1-3/4 | 1-3/4 | 30 | 305 | 152 | 45 | 180 | 100 | 35 | 21.25 |
| RN04-2 | 2 | 39.4 | 356 | 178 | 50 | 180 | 100 | 38 | 30.34 |
| RN04-2-1/4 | 2-1/4 | 45 | 406 | 203 | 57 | 180 | 100 | 45 | 39.87 |
| RN04-2-1/2 | 2-1/2 | 55.5 | 406 | 203 | 64 | 355 | 178 | 50 | 64.40 |
| RN04-2-3/4 | 2-3/4 | 63 | 406 | 214 | 70 | 406 | 203 | 57 | 89.00 |
| RN04-3 | 3 | 70 | 457 | 228 | 76 | 406 | 203 | 64 | 112.14 |
