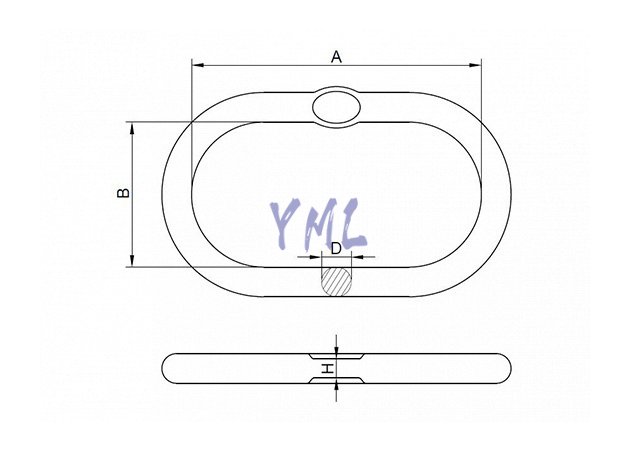

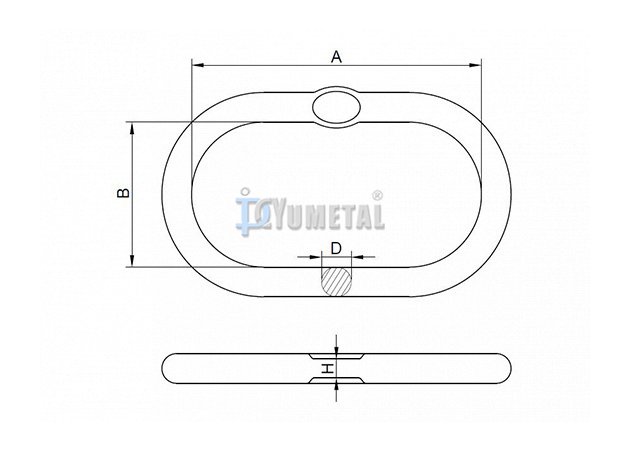

| Art No. | Size inch | WLL ton | Dimensions (mm) | Weight kg/pc | |||
| A | B | D | H | ||||
| RN03-7/16 | 7/16 | 1.6 | 100 | 60 | 12 | 6 | 0.27 |
| RN03-1/2 | 1/2 | 2.5 | 100 | 60 | 14 | 7.6 | 0.38 |
| RN03-11/16 | 11/16 | 4 | 160 | 90 | 18 | 8.4 | 0.85 |
| RN03-3/4 | 3/4 | 6.5 | 160 | 90 | 20 | 10.5 | 1.20 |
| RN03-7/8 | 7/8 | 8 | 180 | 100 | 22 | 13.5 | 1.63 |
| RN03-1 | 1 | 11.5 | 180 | 100 | 25 | 16.5 | 2.13 |
| RN03-1-1/8 | 1-1/8 | 11.8 | 270 | 140 | 28 | 19 | 3.81 |
| RN03-1-1/4 | 1-1/4 | 16 | 270 | 140 | 32 | 19 | 5.05 |
| RN03-1-3/8 | 1-3/8 | 24 | 285 | 155 | 36 | 20 | 6.83 |
| RN03-1-1/2 | 1-1/2 | 25 | 300 | 160 | 40 | 26 | 8.90 |
| RN03-1-3/4 | 1-3/4 | 31.5 | 340 | 180 | 45 | 26 | 12.80 |
| RN03-2 | 2 | 45 | 390 | 215 | 51 | 32 | 17.30 |
