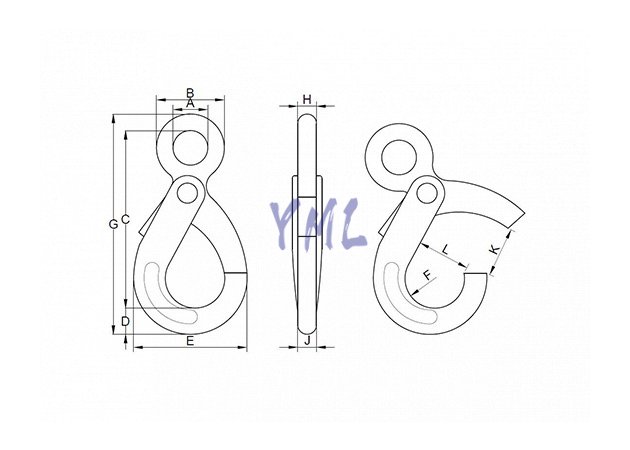

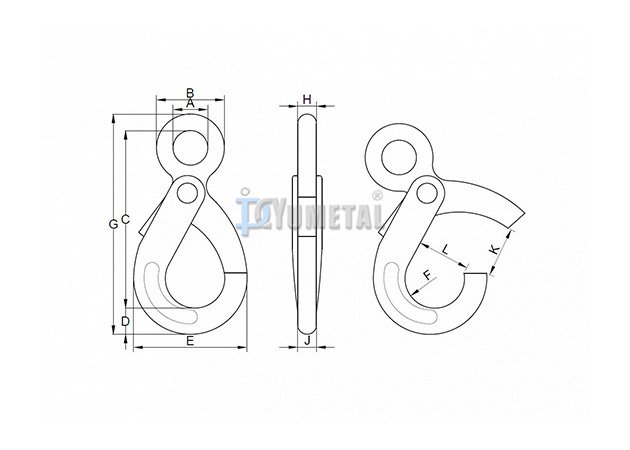

| Art No. | Size | WLL | Ultimate Load | Dimensions (inch) | Weight | |||||||||||
| inch | mm | lbs | ton | A | B | C | D | E | F | G | H | J | K | L | lb/pc | |
| GK13-06 | - | 6 | 2500 | 20000 | 0.79 | 1.42 | 3.95 | 0.79 | 2.60 | 0.67 | 5.06 | 0.31 | 0.63 | 1.34 | 1.14 | 0.85 |
| GK13-08 | 1/4"-5/16" | 7-8 | 4500 | 36000 | 0.98 | 1.88 | 5.24 | 1.10 | 3.50 | 0.87 | 5.64 | 0.39 | 0.81 | 1.71 | 1.46 | 1.81 |
| GK13-10 | 3/8" | 10 | 7100 | 56800 | 1.30 | 2.44 | 6.63 | 1.15 | 4.35 | 1.10 | 8.30 | 0.51 | 0.94 | 2.20 | 1.87 | 3.24 |
| GK13-13 | 1/2" | 13 | 12000 | 96000 | 1.81 | 3.15 | 8.31 | 1.66 | 5.45 | 1.26 | 10.63 | 0.67 | 1.16 | 2.64 | 2.11 | 5.96 |
| GK13-16 | 5/8" | 16 | 18100 | 144800 | 2.20 | 3.94 | 10.06 | 2.05 | 6.56 | 1.50 | 12.97 | 0.87 | 1.50 | 3.15 | 2.49 | 12.75 |
