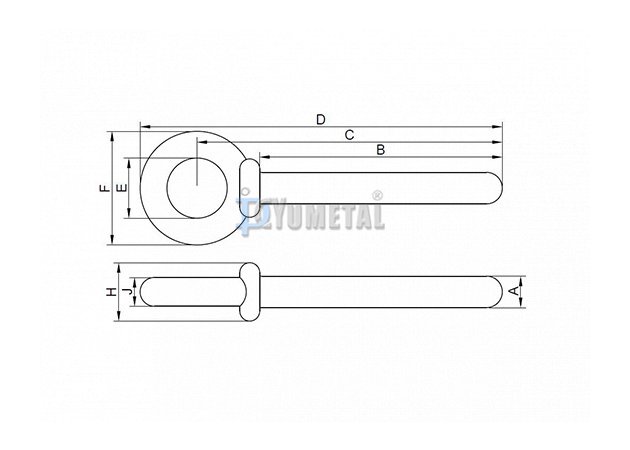

| Art No. | Size | WLL | Dimensions (inch) | Weight | ||||||||
| inch | lbs | A | B | C | D | E | F | G | H | J | lb/100pcs | |
| EB11-1/4×2 | 1/4"×2" | 500.00 | 0.25 | 0.50 | 0.88 | 0.19 | 1.50 | 2.00 | 2.94 | 0.50 | 0.47 | 6.61 |
| EB11-1/4×4 | 1/4"×4" | 500.00 | 0.25 | 0.50 | 0.88 | 0.19 | 2.50 | 4.00 | 4.94 | 0.50 | 0.47 | 8.61 |
| EB11-5/16×2 1/4 | 5/16"×2-1/4" | 800.00 | 0.31 | 0.62 | 1.12 | 0.25 | 1.50 | 2.25 | 3.50 | 0.69 | 0.56 | 12.50 |
| EB11-5/16×4 1/4 | 5/16"×4-1/4" | 800.00 | 0.31 | 0.62 | 1.12 | 0.25 | 2.50 | 4.25 | 5.50 | 0.69 | 0.56 | 18.75 |
| EB11-3/8×2 1/2 | 3/8"×2-1/2" | 1200.00 | 0.38 | 0.75 | 1.38 | 0.31 | 1.50 | 2.50 | 3.97 | 0.78 | 0.66 | 19.00 |
| EB11-3/8×4 1/2 | 3/8"×4-1/2" | 1200.00 | 0.38 | 0.75 | 1.38 | 0.31 | 2.50 | 4.50 | 5.97 | 0.78 | 0.66 | 31.58 |
| EB11-1/2×3 1/4 | 1/2"×3-1/4" | 2200.00 | 0.50 | 1.00 | 1.75 | 0.38 | 1.50 | 3.25 | 5.12 | 1.00 | 0.91 | 37.50 |
| EB11-1/2×6 | 1/2"×6" | 2200.00 | 0.50 | 1.00 | 1.75 | 0.38 | 3.00 | 6.00 | 7.88 | 1.00 | 0.91 | 56.25 |
| EB11-5/8×4 | 5/8"×4" | 3500.00 | 0.62 | 1.25 | 2.25 | 0.50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 | 75.00 |
| EB11-5/8×6 | 5/8"×6" | 3500.00 | 0.62 | 1.25 | 2.25 | 0.50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 | 100.25 |
| EB11-3/4×4 1/2 | 3/4"×4-1/2" | 5200.00 | 0.75 | 1.50 | 2.75 | 0.62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 | 125.00 |
| EB11-3/4×6 | 3/4"×6" | 5200.00 | 0.75 | 1.50 | 2.75 | 0.62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 | 150.00 |
| EB11-7/8×5 | 7/8"×5" | 7200.00 | 0.88 | 1.75 | 3.25 | 0.75 | 2.50 | 5.00 | 8.47 | 1.84 | 1.56 | 225.00 |
| EB11-1×6 | 1"×6" | 10000.00 | 1.00 | 2.00 | 3.75 | 0.88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 | 375.00 |
| EB11-1×9 | 1"×9" | 10000.00 | 1.00 | 2.00 | 3.75 | 0.88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 | 429.00 |
| EB11-1 1/4×8 | 1-1/4"×8" | 15200.00 | 1.25 | 2.25 | 4.50 | 1.00 | 4.00 | 8.00 | 12.72 | 2.47 | 2.28 | 650.00 |
| EB11-1 1/4×12 | 1-1/4"×12" | 15200.00 | 1.25 | 2.25 | 4.50 | 1.00 | 4.00 | 12.00 | 16.72 | 2.47 | 2.28 | 775.00 |
| EB11-1 1/2×15 | 1-1/2"×15" | 21400.00 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 | 1425.00 |
