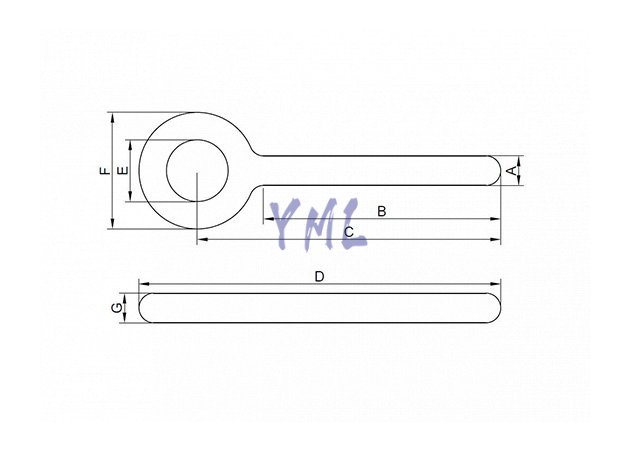

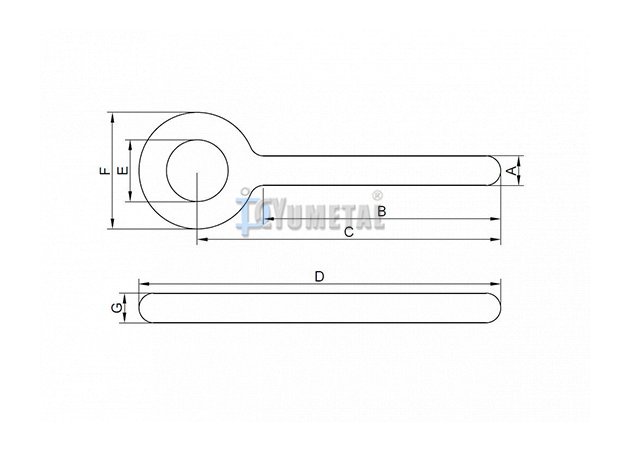

| Art No. | Size | Dimensions (inch) | Weight | ||||||
| inch | A | B | C | D | E | F | G | lb/100pcs | |
| EB10-1/4×2 | 1/4"×2" | 0.25 | 2.00 | 2.63 | 3.13 | 0.50 | 1.00 | 0.25 | 6.30 |
| EB10-1/4×4 | 1/4"×4" | 0.25 | 4.00 | 4.63 | 5.13 | 0.50 | 1.00 | 0.25 | 11.30 |
| EB10-5/16×2 1/4 | 5/16"×2-1/4" | 0.31 | 2.25 | 3.00 | 3.63 | 0.63 | 1.25 | 0.31 | 12.00 |
| EB10-5/16×4 1/4 | 5/16"×4-1/4" | 0.31 | 4.25 | 5.00 | 5.63 | 0.63 | 1.25 | 0.31 | 18.30 |
| EB10-3/8×2 1/2 | 3/8"×2-1/2" | 0.38 | 2.50 | 3.38 | 4.13 | 0.75 | 1.50 | 0.38 | 25.00 |
| EB10-3/8×4 1/2 | 3/8"×4-1/2" | 0.38 | 4.50 | 5.38 | 6.13 | 0.75 | 1.50 | 0.38 | 27.60 |
| EB10-3/8×6 | 3/8"×6" | 0.38 | 6.00 | 6.88 | 7.62 | 0.75 | 1.50 | 0.38 | 31.50 |
| EB10-1/2×3 1/4 | 1/2"×3-1/4" | 0.50 | 3.25 | 4.38 | 5.38 | 1.00 | 2.00 | 0.50 | 43.80 |
| EB10-1/2×6 | 1/2"×6" | 0.50 | 6.00 | 7.13 | 8.13 | 1.00 | 2.00 | 0.50 | 62.50 |
| EB10-5/8×4 | 5/8"×4" | 0.62 | 4.00 | 5.50 | 6.75 | 1.25 | 2.50 | 0.62 | 93.80 |
| EB10-5/8×6 | 5/8"×6" | 0.62 | 6.00 | 7.50 | 8.75 | 1.25 | 2.50 | 0.62 | 113.00 |
| EB10-3/4×4 1/2 | 3/4"×4-1/2" | 0.75 | 4.50 | 6.25 | 7.75 | 1.50 | 3.00 | 0.75 | 143.80 |
| EB10-3/4×6 | 3/4"×6" | 0.75 | 6.00 | 7.75 | 9.25 | 1.50 | 3.00 | 0.75 | 162.50 |
| EB10-7/8×5 | 7/8"×5" | 0.88 | 5.00 | 7.00 | 8.75 | 1.75 | 3.50 | 0.88 | 238.00 |
| EB10-7/8×8 | 7/8"×8" | 0.88 | 8.00 | 10.00 | 11.75 | 1.75 | 3.50 | 0.88 | 291.00 |
| EB10-1×6 | 1"×6" | 1.00 | 6.00 | 8.38 | 10.38 | 2.00 | 4.00 | 1.00 | 375.00 |
| EB10-1×9 | 1"×9" | 1.00 | 9.00 | 11.38 | 13.38 | 2.00 | 4.00 | 1.00 | 450.00 |
| EB10-1 1/4×8 | 1-1/4"×8" | 1.25 | 8.00 | 10.88 | 13.38 | 2.50 | 5.00 | 1.25 | 720.00 |
| EB10-1 1/4×12 | 1-1/4"×12" | 1.25 | 12.00 | 14.88 | 17.38 | 2.50 | 5.00 | 1.25 | 855.00 |
