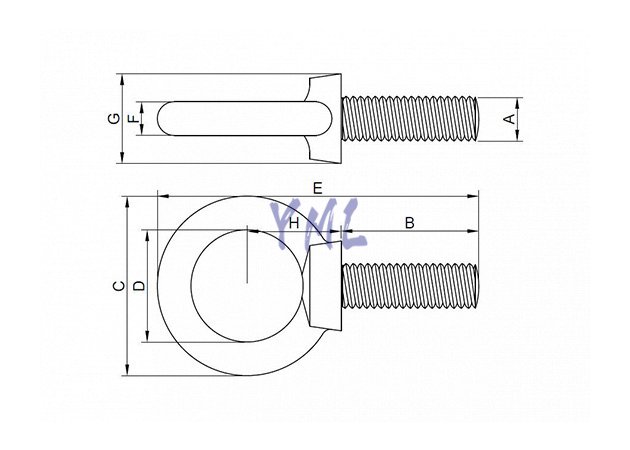

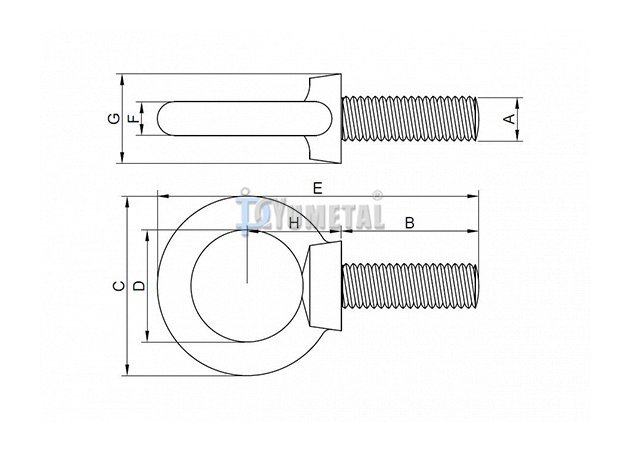

| Art No. | Size | WLL | Dimensions (inch) | Weight | ||||||
| inch | lbs | A | B | C | D | E | F | G | lb/100pcs | |
| EB09-1/4×1 | 1/4"×1" | 650.00 | 1/4-20 | 1.02 | 1.13 | 0.78 | 2.29 | 0.19 | 0.53 | 5.00 |
| EB09-5/16×1 1/8 | 5/16"×1-1/8" | 1200.00 | 5/16-18 | 1.15 | 1.38 | 0.88 | 2.74 | 0.25 | 0.59 | 9.00 |
| EB09-3/8×1 1/4 | 3/8"×1-1/4" | 1550.00 | 3/8-16 | 1.27 | 1.62 | 1.00 | 3.07 | 0.31 | 0.69 | 15.00 |
| EB09-1/2×1 1/2 | 1/2"×1-1/2" | 2600.00 | 1/2-13 | 1.53 | 1.95 | 1.19 | 3.70 | 0.38 | 0.91 | 28.00 |
| EB09-5/8×1 3/4 | 5/8"×1-3/4" | 5200.00 | 5/8-11 | 1.79 | 2.38 | 1.38 | 4.45 | 0.50 | 1.13 | 55.00 |
| EB09-3/4×2 | 3/4"×2" | 7200.00 | 3/4-10 | 2.05 | 2.76 | 1.50 | 5.07 | 0.63 | 1.38 | 96.00 |
| EB09-7/8×2 1/4 | 7/8"×2-1/4" | 10600.00 | 7/8-9 | 2.31 | 3.25 | 1.75 | 5.87 | 0.75 | 1.56 | 154.00 |
| EB09-1×2 1/2 | 1"×2-1/2" | 13300.00 | 1-8 | 2.57 | 3.76 | 2.00 | 6.66 | 0.88 | 1.81 | 238.00 |
| EB09-1 1/4×3 | 1-1/4"×3" | 21000.00 | 1 1/4-7 | 3.09 | 4.50 | 2.50 | 7.95 | 1.00 | 2.28 | 399.00 |
| EB09-1 1/2×3 1/2 | 1-1/2"×3-1/2" | 24000.00 | 1 1/2-6 | 3.60 | 5.50 | 3.00 | 9.49 | 1.25 | 2.75 | 720.00 |
