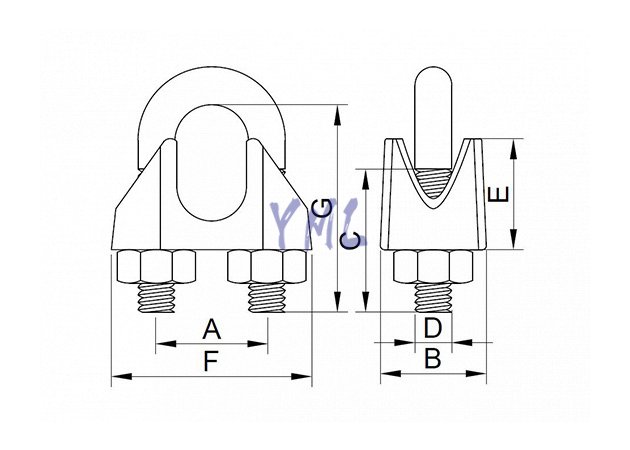

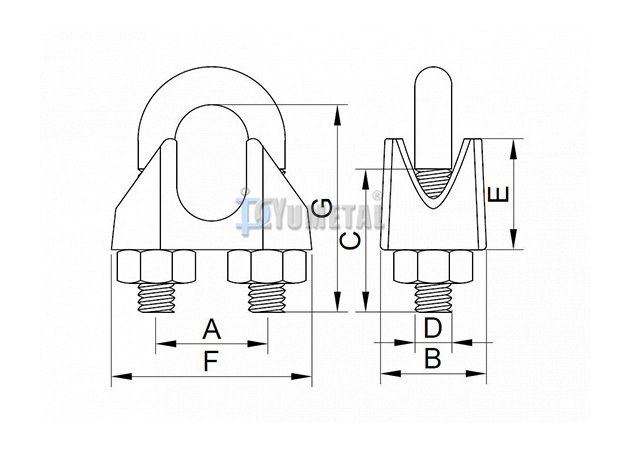

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| inch | A | B | C | D | E | F | G | kg/pc | |
| CL09-1/8 | 1/8" | 12.7 | 12 | 12 | 10-24 | 11 | 23 | 20 | 0.019 |
| CL09-3/16 | 3/16" | 14 | 14 | 15 | 1/4-20 | 12 | 26 | 24 | 0.030 |
| CL09-1/4 | 1/4" | 17 | 19 | 19 | 5/16-18 | 15 | 34 | 30 | 0.059 |
| CL09--5/6 | 5/6" | 17 | 21 | 22 | 5/16-18 | 16 | 34 | 30 | 0.064 |
| CL09-3/8 | 3/8" | 22 | 22 | 25 | 3/8-16 | 19 | 41 | 41 | 0.098 |
| CL09-7/16 | 7/16" | 22 | 25 | 25 | 3/8-16 | 22 | 41 | 41 | 0.105 |
| CL09-1/2 | 1/2" | 25 | 26 | 31 | 7/16-14 | 25 | 47 | 55 | 0.164 |
| CL09-9/16 | 9/16" | 28 | 31 | 37 | 1/2-13 | 30 | 55 | 50 | 0.173 |
| CL09-5/8 | 5/8" | 30 | 33 | 37 | 1/2-13 | 31 | 55 | 58 | 0.254 |
| CL09-3/4 | 3/4" | 34 | 39 | 41 | 9/16-12 | 33 | 61 | 63 | 0.377 |
| CL09-7/8 | 7/8" | 41 | 47 | 46 | 5/8-11 | 44 | 69 | 77 | 0.626 |
| CL09-1 | 1" | 44 | 50 | 52 | 5/8-11 | 52 | 77 | 85 | 0.680 |
