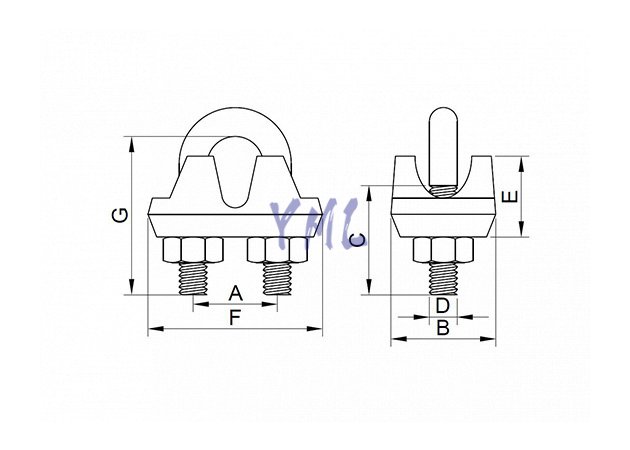

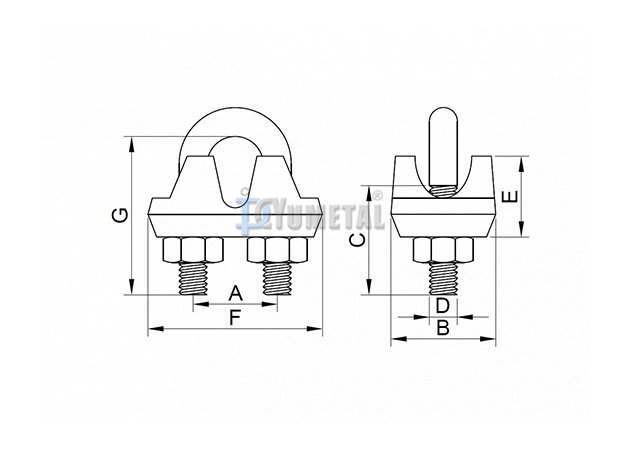

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| mm | A | B | C | D | E | F | G | kg/100pcs | |
| CL08-08 | 8 | 18 | 19 | 22 | 8 | 14 | 34 | 32 | 0.062 |
| CL08-10 | 10 | 22 | 23 | 28 | 10 | 17 | 42 | 40 | 0.120 |
| CL08-12 | 12 | 26 | 30 | 33 | 12 | 20 | 50 | 48 | 0.210 |
| CL08-14 | 14 | 28 | 30 | 33 | 12 | 21.5 | 52 | 52 | 0.230 |
| CL08-16 | 16 | 34 | 38 | 44 | 16 | 26.5 | 66 | 64 | 0.480 |
| CL08-18 | 18 | 36 | 38 | 44 | 16 | 27 | 68 | 68 | 0.526 |
| CL08-20 | 20 | 38 | 38 | 44 | 16 | 30 | 70 | 72 | 0.540 |
| CL08-22 | 22 | 40 | 38 | 44 | 16 | 31.5 | 72 | 76 | 0.580 |
| CL08-26 | 26 | 50 | 48 | 55 | 20 | 37.5 | 90 | 92 | 1.120 |
| CL08-28 | 28 | 52 | 48 | 55 | 20 | 39 | 92 | 96 | —— |
| CL08-32 | 32 | 56 | 48 | 55 | 20 | 41 | 96 | 104 | —— |
| CL08-36 | 36 | 64 | 58 | 66 | 24 | 48 | 112 | 120 | —— |
| CL08-40 | 40 | 68 | 58 | 66 | 24 | 50 | 116 | 128 | —— |
