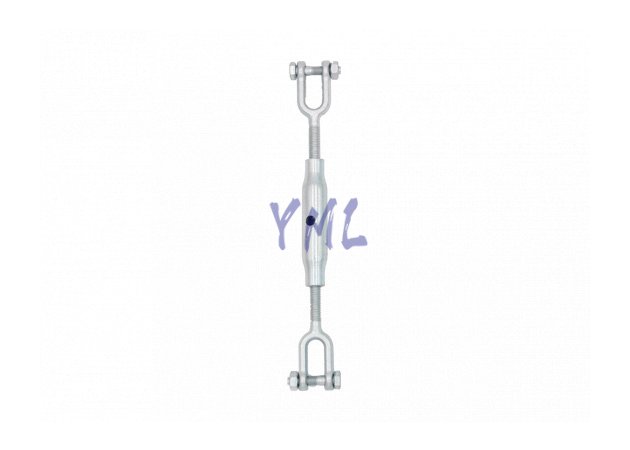

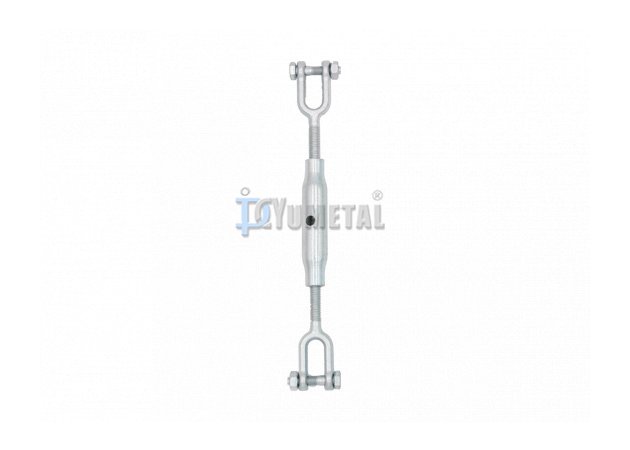

DIN1478 Turnbuckle Closed Body, Jaw-Jaw
Eye and Eye, Jaw and Eye, Hook and Eye are available
DIN1478 Turnbuckle Closed Body, Jaw-Jaw
Eye and Eye, Jaw and Eye, Hook and Eye are available

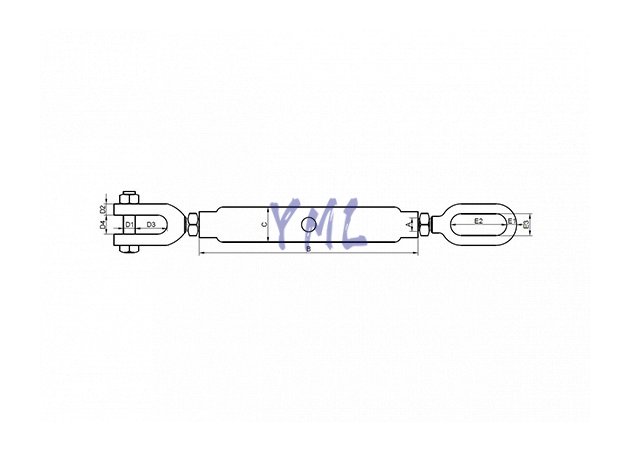

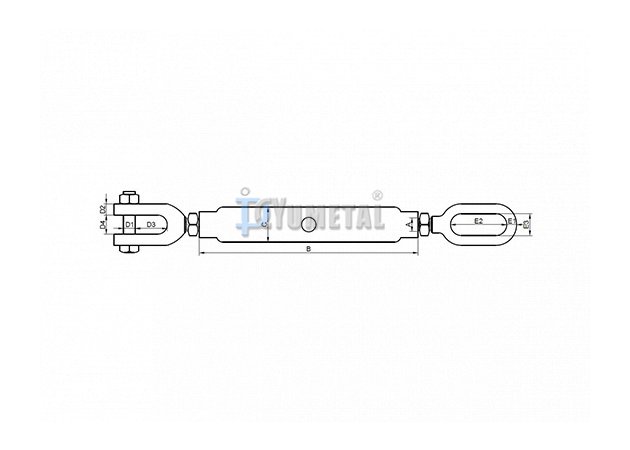

| Art No. | Size | Dimension(mm) | Adjustable | ||||||||||
| (mm) | A | B | C | D | E | L | L1 | L2 | H | H1 | K | ||
| TB13-06 | M6 | 6 | 110 | 17.2 | 7.5 | 6 | 95 | 88 | 27 | 19 | 9 | M6 x 25 | 90 |
| TB13-08 | M8 | 8 | 110 | 17.2 | 10 | 8 | 125 | 116 | 33 | 23 | 9 | M8 x 35 | 85 |
| TB13-10 | M10 | 10 | 125 | 21.3 | 12 | 8 | 135 | 125 | 40 | 27.5 | 12.5 | M8 x 35 | 95 |
| TB13-12 | M12 | 12 | 125 | 25 | 15 | 10 | 160 | 150 | 50 | 32 | 15.5 | M10 x 45 | 90 |
| TB13-16 | M16 | 16 | 170 | 30 | 20 | 10 | 188 | 170 | 60 | 41 | 20 | M12 x 55 | 120 |
| TB13-20 | M20 | 20 | 200 | 33.7 | 24 | 12 | 205 | 185 | 68 | 46 | 23.5 | M16 x 65 | 140 |
| TB13-24 | M24 | 24 | 255 | 42.4 | 29 | 12 | 240 | 215 | 76 | 60 | 27.5 | M20 x 80 | 180 |
| TB13-30 | M30 | 30 | 255 | 51 | 35 | 16 | 290 | 255 | 102 | 70.6 | 34 | M24 x 90 | 160 |
| TB13-36 | M36 | 36 | 295 | 63.5 | 43 | 16 | -- | -- | -- | -- | -- | -- | 180 |
| TB13-42 | M42 | 42 | 330 | 70 | 51 | 20 | -- | -- | -- | -- | -- | -- | 200 |
| TB13-48 | M48 | 48 | 355 | 82.5 | 58 | 20 | -- | -- | -- | -- | -- | -- | 210 |
