| Art No. | Size | Dimensions (mm) | Weight | |||||||

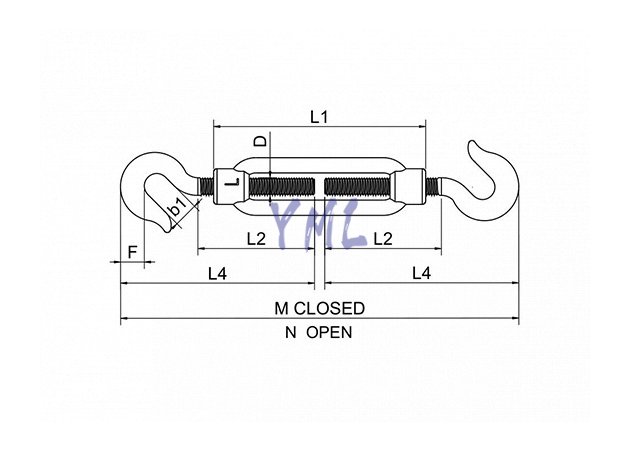

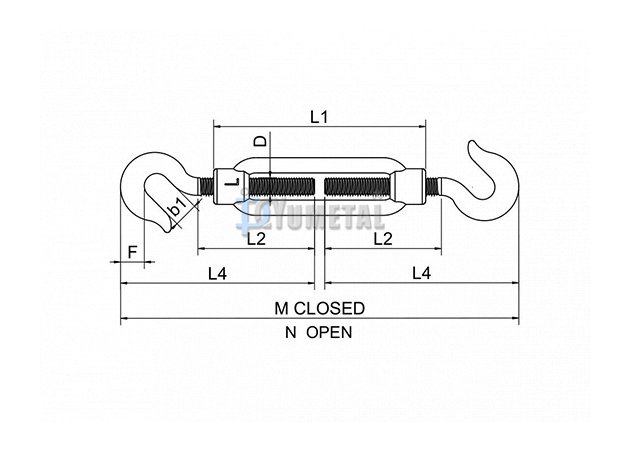

| (mm) | D | L1 | L2 | L4 | M(Close) | N(Open) | b1 | F | kg/pc | |
| TB12-06HH | 6 | 6 | 110 | 55 | 92 | 184 | 270 | 8 | 15 | 0.11 |
| TB12-08HH | 8 | 8 | 110 | 57 | 100 | 200 | 280 | 10.5 | 15 | 0.20 |
| TB12-10HH | 10 | 10 | 125 | 68 | 117 | 234 | 323 | 13 | 11 | 0.28 |
| TB12-12HH | 12 | 12 | 125 | 70 | 130 | 260 | 343 | 16 | 13 | 0.43 |
| TB12-14HH | 14 | 14 | 140 | 75 | 139 | 278 | 368 | 18 | 15 | 0.61 |
| TB12-16HH | 16 | 16 | 170 | 88 | 161 | 322 | 438 | 20 | 17 | 1.00 |
| TB12-20HH | 20 | 20 | 200 | 105 | 191 | 382 | 514 | 21 | 21 | 1.60 |
| TB12-22HH | 22 | 22 | 220 | 118 | 228 | 456 | 601 | 24 | 28 | 2.20 |
| TB12-24HH | 24 | 24 | 255 | 135 | 248 | 496 | 673 | 26 | 33 | 2.80 |
| TB12-30HH | 30 | 30 | 255 | 135 | 275 | 550 | 715 | 34 | 35 | 4.10 |
| TB12-33HH | 33 | 33 | 295 | 148 | 300 | 600 | 799 | 38 | 40 | 6.00 |
| TB12-36HH | 36 | 36 | 295 | 158 | 320 | 640 | 825 | 46 | 45 | 8.30 |
