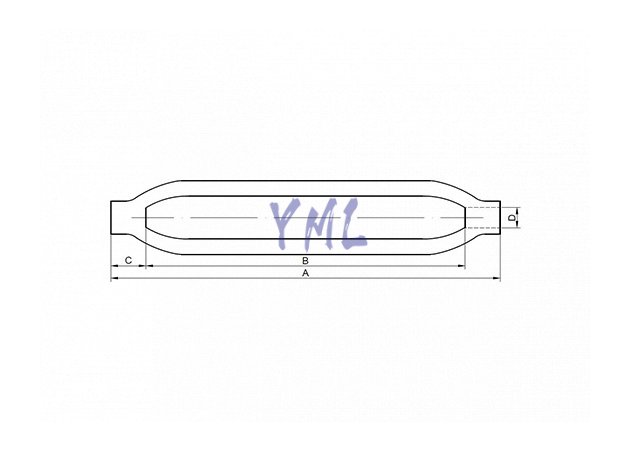

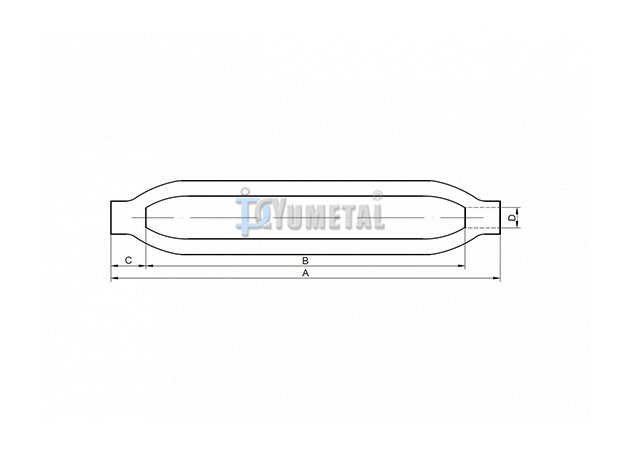

| Art No. | Size(D) | Dimensions (mm) | WLL | Weight | |||
| mm | in | A | B | C | ton | kg/pc | |
| TB06-06 | 6 | 1/4" | 100 | 78.00 | 8.00 | 0.20 | 0.08 |
| TB06-08 | 8 | 5/16" | 125 | 100.00 | 10.00 | 0.31 | 0.15 |
| TB06-09 | 9 | 3/8" | 150 | 122.00 | 12.00 | 0.60 | 0.17 |
| TB06-12 | 12 | 1/2" | 200 | 166.00 | 15.00 | 0.80 | 0.29 |
| TB06-16 | 16 | 5/8" | 250 | 208.00 | 19.00 | 1.26 | 0.52 |
| TB06-19 | 19 | 3/4" | 300 | 252.00 | 23.00 | 1.90 | 0.85 |
| TB06-22 | 22 | 7/8" | 325 | 273.00 | 27.00 | 2.50 | 1.17 |
| TB06-25 | 25 | 1" | 350 | 290.00 | 31.00 | 3.00 | 1.64 |
| TB06-32 | 32 | 1-1/4" | 400 | 322.00 | 39.00 | 5.00 | 3.51 |
| TB06-38 | 38 | 1-1/2" | 450 | 358.00 | 46.00 | 7.00 | 5.30 |
