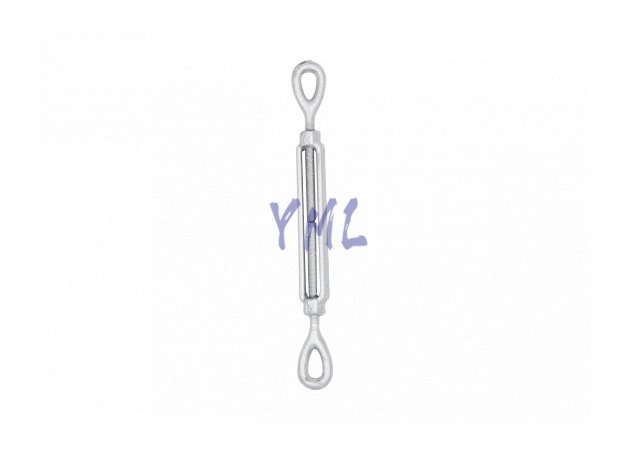

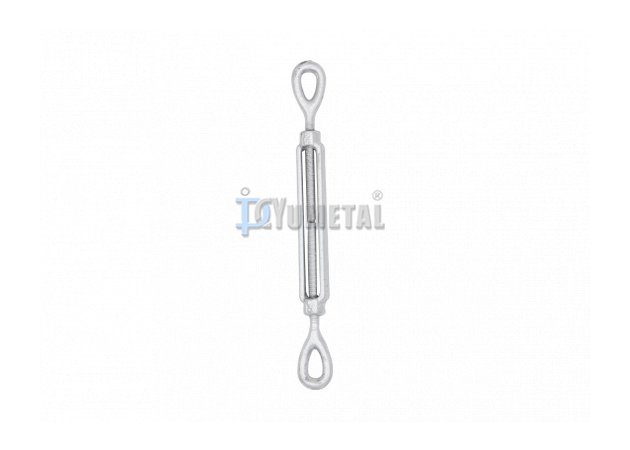

TB05 Tornillo de tensor americano de pieza forjada Ojo/Ojo

Parámetros Técnicos

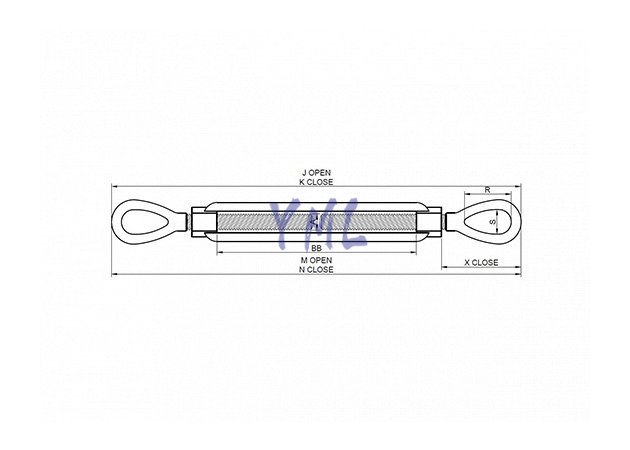

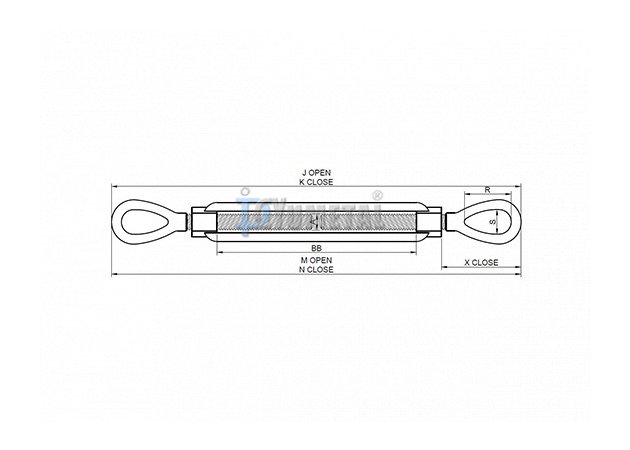

Art No.SizeWorking Load LimitDimensions (in.)Weight

(inch)(lbs)AJ       OpenK      ClosedM     OpenN     ClosedRSX     ClosedBB(lbs/pc)
TB05-1/4×4EE1/4"×4"500 0.25 11.80 7.80 12.25 8.25 0.78 0.34 1.75 4.00 0.26
TB05-5/16×4-1/2EE5/16"×4-1/2"800 0.31 13.56 9.06 14.12 9.62 0.94 0.44 2.09 4.50 0.45
TB05-3/8×6EE3/8"×6"1200 0.38 17.47 11.47 18.16 12.16 1.12 0.53 2.52 6.00 0.76
TB05-1/2×6EE1/2"×6"2200 0.44 20.08 13.08 20.96 13.96 1.42 0.72 3.23 6.00 1.54
TB05-1/2×9EE1/2"×9"2200 0.50 26.08 16.08 26.96 16.96 1.42 0.72 3.23 9.00 1.13
TB05-1/2×12EE1/2"×12"2200 0.50 32.08 19.08 32.96 19.96 1.42 0.72 3.23 12.00 2.14
TB05-5/8×6EE5/8"×6"3500 0.50 21.93 14.68 22.93 15.68 1.80 0.88 3.90 6.00 3.28
TB05-5/8×9EE5/8"×9"3500 0.63 27.93 17.68 28.93 18.68 1.80 0.88 3.90 9.00 2.83
TB05-5/8×12EE5/8"×12"3500 0.63 33.93 20.68 34.93 21.68 1.80 0.88 3.90 12.00 3.42
TB05-3/4×6EE3/4"×6"5200 0.75 23.88 16.38 25.12 17.62 2.09 1.00 4.69 6.00 3.79
TB05-3/4×9EE3/4"×9"5200 0.75 29.88 19.38 31.12 20.62 2.09 1.00 4.69 9.00 4.61
TB05-3/4×12EE3/4"×12"5200 0.75 35.88 22.38 37.12 23.62 2.09 1.00 4.69 12.00 5.48
TB05-3/4×18EE3/4"×18"5200 0.75 47.88 28.38 49.12 29.62 2.09 1.00 4.69 18.00 7.19
TB05-7/8×12EE7/8"×12"7200 0.88 37.07 23.63 38.57 24.82 2.38 1.25 5.10 12.00 7.22
TB05-7/8×18EE7/8"×18"7200 0.88 49.07 29.32 50.57 30.82 2.38 1.25 5.10 18.00 9.95
TB05-1×6EE1"×6"10000 1.00 27.97 19.97 29.72 21.72 3.00 1.44 6.36 6.00 9.04
TB05-1×12EE1"×12"10000 1.00 39.97 25.97 41.97 27.72 3.00 1.44 6.36 12.00 11.50
TB05-1×18EE1"×18"10000 1.00 51.97 31.97 53.72 33.72 3.00 1.44 6.36 18.00 14.00
TB05-1×24EE1"×24"10000 1.00 63.97 37.97 65.72 39.72 3.00 1.44 6.36 6.00 17.25
TB05-1-1/4×12EE1-1/4"×12"15200 1.25 42.81 28.31 45.06 30.56 3.56 1.81 7.72 12.00 19.00
TB05-1-1/4×18EE1-1/4×18"15200 1.25 54.81 34.31 57.06 36.56 3.56 1.81 7.72 18.00 23.00
TB05-1-1/4×24EE1-1/4"×24"15200 1.25 66.81 40.31 69.06 42.56 3.56 1.81 7.72 24.00 27.00
TB05-1-1/2×12EE1-1/2"×12"21400 1.50 45.50 30.50 48.00 33.00 4.06 2.12 8.62 12.00 27.50
TB05-1-1/2×18EE1-1/2"×18"21400 1.50 57.50 36.50 60.00 39.00 4.06 2.12 8.62 18.00 31.00
TB05-1-1/2×24EE1-1/2"×24"21400 1.50 69.50 42.50 72.00 45.00 4.06 2.12 8.62 24.00 37.50
TB05-1-3/4×18EE1-3/4"×18"28000 1.75 57.38 39.38 60.38 42.38 4.62 2.38 10.00 18.00 52.50
TB05-1-3/4×24EE1-3/4"×24"28000 1.75 69.38 45.38 72.38 48.38 4.62 2.38 10.00 24.00 58.00
TB05-2×24EE2"×24"37000 2.00 75.69 51.69 79.19 55.19 5.75 2.69 13.09 24.00 85.25
TB05-2-1/2×24EE2-1/2"×24"60000 2.50 78.62 54.62 82.62 58.62 6.50 3.12 13.78 24.00 144.25
TB05-2-3/4×24EE2-3/4"×24"75000 2.75 81.00 57.00 85.50 61.50 7.00 3.25 15.22 24.00 194.00
